Remove/install floor selector - AR26.60-P-0600V

TRANSMISSIONS 716.65 in MODEL 171

TRANSMISSIONS 716.6 in MODEL 171

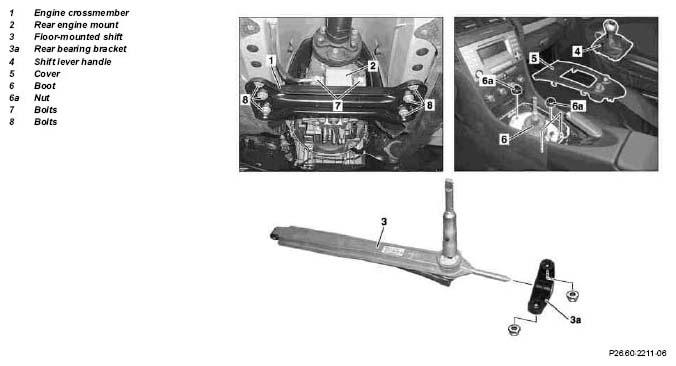

Fig 1: Identifying Floor Selector Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates below the hoist support points specified by the vehicle manufacturer.	-
1	Move transmission into neutral position
2	Raise vehicle with lifting platform		-
3	Remove the rear part of the engine compartment paneling		AR61.20-P-1105V
4	Remove engine crossmember (1) with rear engine mount (2); to do this, unscrew bolts (7, 8)	Bolt of rear engine mount to transmission	*BA22.10-P-1008-01O
		Bolt of rear engine crossmember to body	*BA22.10-P-1003-01O
5	Detach center shifter console (3) and shift rod from transmission		AR26.60-P-0600-02V
6	Remove gearshift lever handle (4)		AR26.60-P-0610-11A
7	Remove cover (5) from gearshift lever		AR68.20-P-2310V
8	Unscrew nuts (6a) and take out boot (6)
9	Pull center shifter console (3) out of the rear bearing bracket (3a) in the direction of travel and take out upwards
10.1	Detach rear bearing bracket (3a) from the propeller shaft tunnel if necessary
11	Install in the reverse order
12	Risk of accident from vehicle starting off by itself when engine running. Risk of injury bruises and burns) resulting from working on the engine while it is being started or when it is running. Check floor shift (3) for proper function	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	-
