Disassemble, assemble center shifter console and shift rod at transmission - AR26.60-P-0600-02V

Shown on transmission 716.631

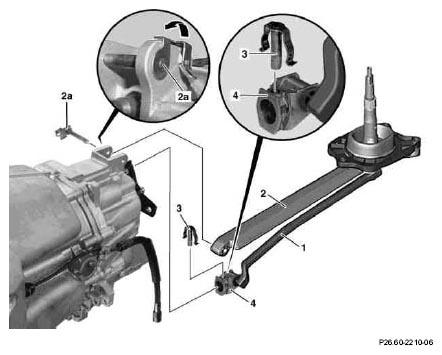

Fig 1: Identifying Center Shifter Console And Shift Rod At Transmission Disassemble/Assemble Components

1. Release lock for bolt (2a) using screwdriver and swivel bolt (2a) up through 90°.
2. Remove bolt (2a) from center shifter console (2).
3. Pull locking pin (3) out of connecting piece (4).
4. Remove center shifter console (2) together with shift rod (1) from transmission.
5. Install in the reverse order.
