Remove/install fanfare horns - AR54.35-P-1555V

MODEL 171.4

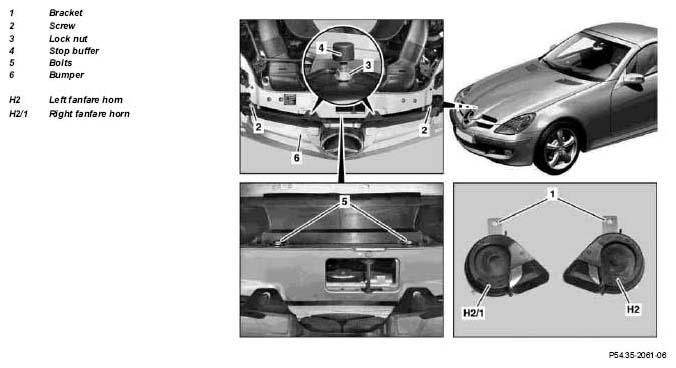

Fig 1: Identifying Fanfare Horns Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood and raise to vertical position		AR88.40-P-1000V
2	Unscrew bolts (2)
3	Loosen jam nuts (3) of the stop buffer (4) and unscrew stop buffer (4)	Installation:  Only tighten the jam nuts (3) after adjusting the height of the hood.
4	Unscrew bolts (5)		*BA54.35-P-1002-01A
5	Remove bumper (6) forwards and take out the left fanfare horn (H2) and right fanfare horn (H2/1) with brackets (1)
6	Separate electrical connectors of left fanfare horn (H2) and right fanfare horn (H2/1)
7	Install in the reverse order
8	Adjust the height of the hood	Refer to: ↓
		Adjust engine hood	AR88.40-P-3020V
9	Carry out function check of left fanfare horn (H2) and right fanfare horn (H2/1)

HORN

Number	Designation		Model 171
BA54.35-P-1002-01A	Bolt, fanfare horn bracket to front cross member	Nm	8
