Remove/install ignition coils - AR15.12-P-2003PR

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 111.951 in MODEL 203.035 /235 /735

ENGINE 111.955 in MODEL 203.045 /245 /745

ENGINE 111.981 in MODEL 203.747

Shown on engine 111

Fig 1: Identifying Ignition Coils Remove/Install Components - Shown On Engine 111 (1 Of 2)

Shown on engine 111

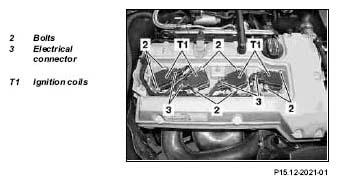

Fig 2: Identifying Ignition Coils Remove/Install Components - Shown On Engine 111 (2 Of 2)

	Remove/Install
1	Detach cover (1)	Inspect rubber seal of trim panel (1), replace if necessary
			*BA01.20-P-1002-01B
	Hazard from touching parts which conduct high voltages	Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out work on the ignition system.	AS15.10-Z-0001-01A
2	Disconnect electrical connectors (3)		AH15.10-P-0002-01D
	Notes on avoiding damage to ignition system
3	Remove screws (2) of the ignition coils (T1)		*BA15.12-P-1001-01E
4	Pull off ignition coils (T1) up together with spark plug connector and remove
5	Install in the reverse order

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation		Engine 111.951/955/981
BA01.20-P-1002-01B	Trim panel to cylinder head cover	Nm	9

ECI IGNITION SYSTEM

Number	Designation		Engine 111.951/955/981
BA15.12-P-1001-01E	Ignition coil to cylinder head cover	Nm	9
