Remove/install windshield washer system pump - AR82.35-P-6002V

MODELS 171.4

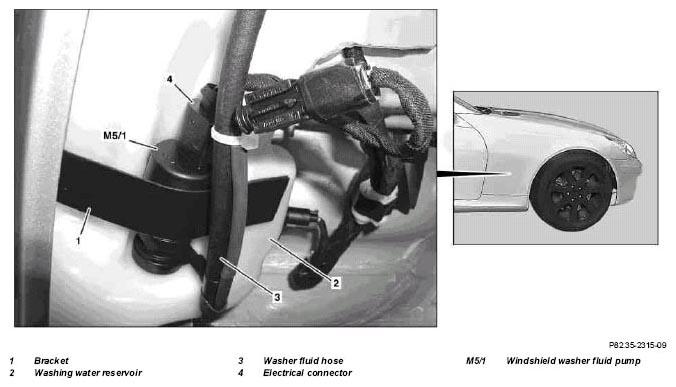

Fig 1: Identifying Windshield Washer System Pump Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove the rear fender liner in the right front fender		AR88.10-P-1300V
2	Unclip one side of the bracket (1) for the window washer fluid pump (M5/1) from the washer fluid reservoir (2)
3	Using an assembly wedge, press windshield washer fluid pump (M5/1) from washer fluid reservoir (2)	Collect washer fluid which flows out.
			Fig 2
4	Detach washer fluid hose (3) from the windshield washer fluid pump (M5/1)	Collect washer fluid which flows out.
5	Disconnect the electrical plug (4) from the windshield washer fluid pump (M5/1) and remove the windshield washer fluid pump (M5/1)	Installation:  Install a new gasket for the windshield washer fluid pump (M5/1) in the windshield washer fluid reservoir (1).
6	Install in the reverse order
7	Fill washer fluid reservoir (1)
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210N
8	Perform function check on windshield washer system	Switch on ignition and check the function of the windshield washer fluid pump (M5/1) by pressing the switch for the windshield washer system. A sufficient amount of water must come out of the windshield washer nozzles.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
