Remove/install fender liner in front fender - AR88.10-P-1300V
MODEL 171.4

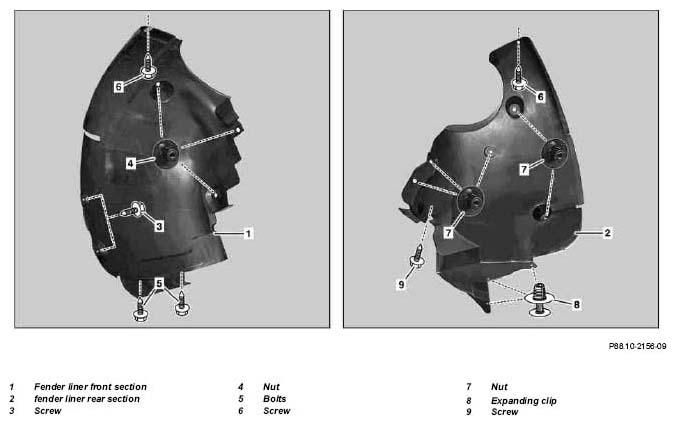

Shown on left fender liner
MODIFICATION NOTES
| 4.8.04 | Repair method modified | "Remove engine paneling" eliminated |
| Remove/Install | |||
|---|---|---|---|
| 1 | Raise vehicle with lifting platform | AR00.60-P-1000V | |
| 2.1 | Turn front wheels all the way to the left | When removing left fender liner front section (1) | |
| 2.2 | Completely turn front wheels to right | When removing right fender liner front section (1) | |
| 3 | Unscrew bolt (6) | ||
| 4.1 | Unscrew screws (3, 5) | When removing fender liner front section (1) | |
| 5.1 | Unscrew nuts (4) | When removing fender liner front section (1) | |
| 6.1 | Remove fender liner front section (1) from front fender with mounting wedge | When removing fender liner front section (1) | |
| Figure | |||
| 7.1 | Unscrew bolt (9) | When removing fender liner rear section (2) | |
| 8.1 | Unscrew nuts (7) | When removing fender liner rear section (2) | |
| 9.1 | Remove expanding clips (8) | When removing fender liner rear section (2) |
|
| 10.1 | Remove inner rear fender section (2) from front fender with mounting wedge | When removing fender liner rear section (2) | |
| Figure | |||
| 11 | Install in the reverse order |
