TELE AID backup antennas, location/task/design/function - GF82.95-P-4102SK: Notes
MODEL 171.4 with CODE (359) TELE AID emergency call system

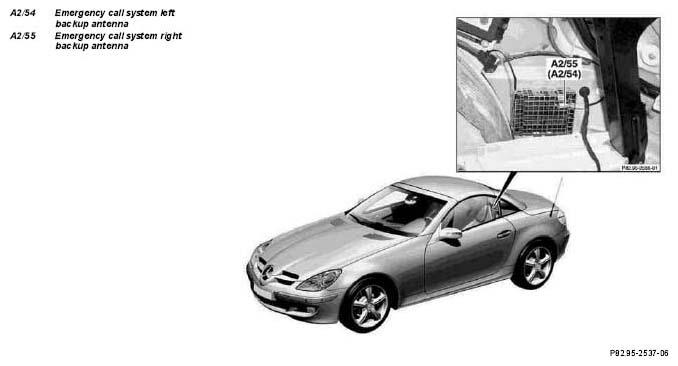

| TELE AID backup antennas, location | The emergency call system left backup antenna (A2/54) and the emergency call system right backup antenna (A2/55) are integrated in the area of the vents in the rear bumper at the side. | |
| TELE AID backup antennas, task | The emergency call system left backup antenna (A2/54) and the emergency call system right backup antenna (A2/55) assume the transmitting and receiving functions for the Telematic Alarm Identification on Demand (emergency call system) (TELE AID) if the rod antenna (A28) fails (e.g. because of a rollover). | |
| TELE AID backup antennas, design | The emergency call system left backup antenna (A2/54) and the emergency call system right backup antenna (A2/55) each consist of an antenna that is tuned to the upper Megahertz (MHz range and an attached coaxial cable. | |
| TELE AID backup antennas, function | GF82.95-P-4102-04SK |
