Fog lamp actuation, function - GF82.10-P-3006SK
MODEL 171.4
Function requirements:
- C. 30 ON
- Standing lamps "ON"
- Exterior lamp switch (S1) in front fog lamp position

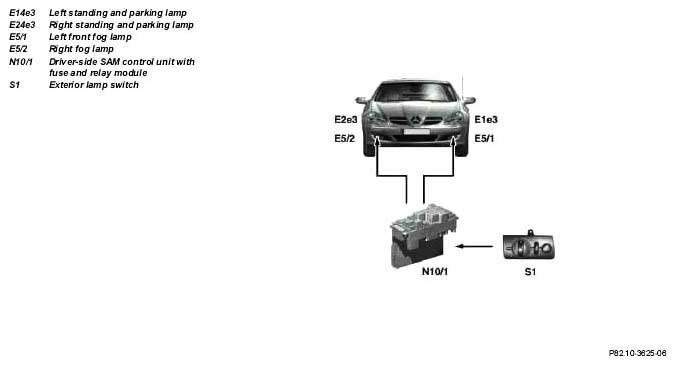

The actuation of the exterior lamp switch (S1) is read in by the driver-side SAM control unit with fuse and relay module (N10/1) via a discrete line. It actuates the following lamps via discrete wiring:
- Left fog lamp (E5/1)
- Right fog lamp (E5/2)
The driver-side SAM control unit with fuse and relay module (N10/1) actuates the front fog lamps indicator lamp (S1e1) in the exterior lamp switch (S1).
| Exterior lamp switch module, location/ function/design | Except code (614) Bi-xenon headlamp unit | GF82.10-P-4104SK |
| With code (614) Bi-xenon headlamp unit | GF82.10-P-4104SKX | |
| Front fog lamp, location/task | GF82.10-P-4030SK | |
| Driver-side SAM control unit with fuse and relay module, location/task/design | GF54.21-P-4109SK |
