Front fog lamp, location/task - GF82.10-P-4030SK

MODEL 171.4

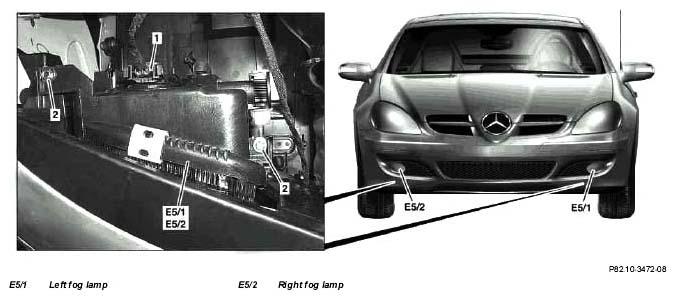

Fig 1: Identifying Front Fog Lamp Location
G05030529Courtesy of MERCEDES-BENZ USA
Front fog lamp, location The left front fog lamp (E5/1) is mounted in the left front bumper and the right fog lamp (E5/2) in the right front bumper.
Front fog lamp, task The left front fog lamp (E5/1) and right front fog lamp (E5/2) are used to improve the illumination of the road in the event of poor visibility (e.g. rain, mist). With the turning lamps, the lamps are also used to illuminate the curves.
