Removing and installing backup antenna for Tele Aid emergency call system - AR82.95-P-0004R
MODEL 230.4 with CODE (855) TELE AID
| Remove/install | |||
|---|---|---|---|
| 1 | Remove loudspeaker cover in rear | AR68.30-P-3445R | |
| 2 | Disconnect TELE AID backup antenna connector (A2/50x1) | ||

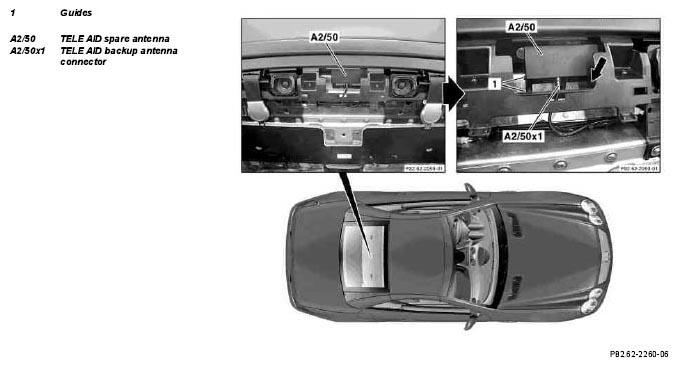

| 3 | Unclip TELE AID backup antenna (A2/50) (arrow) and remove to the front out of guides (1) | ||
| 4 | Install in the reverse order |
