Remove/install rear speaker cover - AR68.30-P-3445R
MODEL 230.4 except CODE (P99) "AMG Black Series" special model
Shown on vehicle with code (220)
Parktronic system (PTS)
| Remove/install | |||
|---|---|---|---|
| 1 | Completely open Vario roof | ||

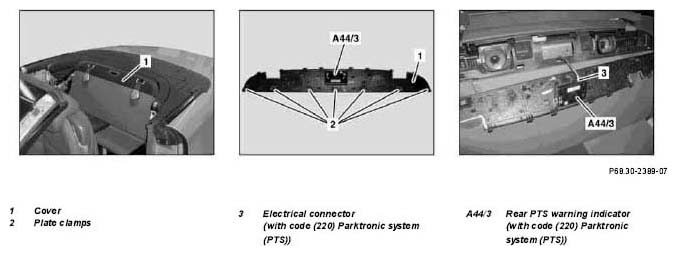

| 2 | Unclip cover (1) from sheet metal clips (2) with mounting wedge. | Figure | |
| 3 | Disconnect electrical connector (3) from rear PTS warning display (A44/3) and remove cover (1). | On vehicles with code (220) Parktronic system (PTS) | |
| 4 | Install in the reverse order |
