Fuse and relay box, as-built configuration - GF54.15-P-0800SXS
MODEL 221.176 with CODE (Z07) Top protection up to Model Year 8

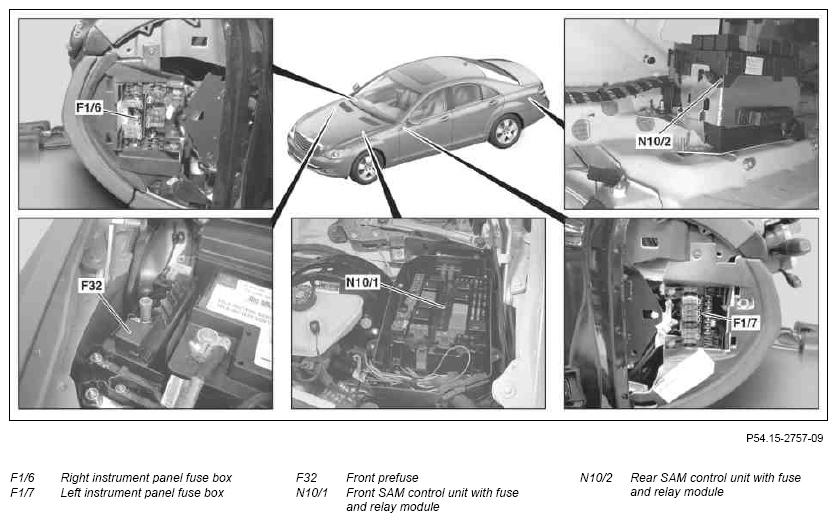

Location - overview

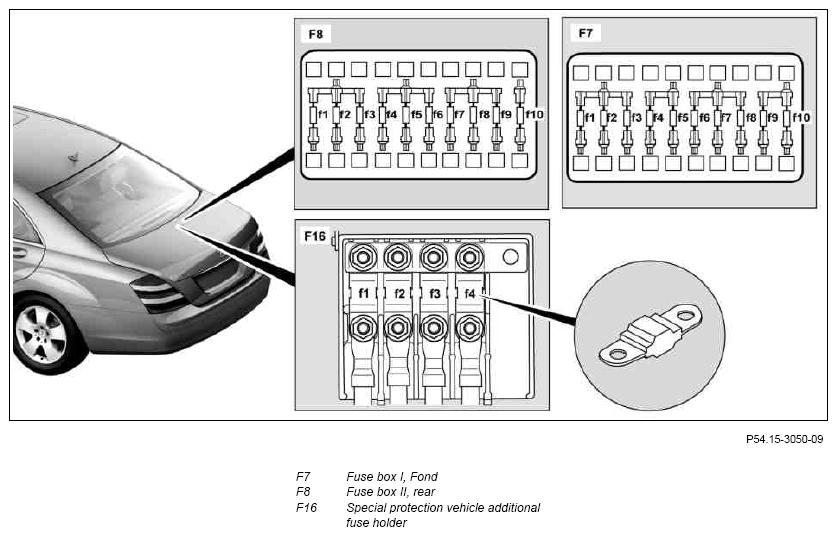

Location of additional fuse holders
The additional fuse holders are located in the luggage compartment of the vehicle under the rear shelf.
Location presentation
| Fuse assignment of fuse and relay box in left engine compartment | GF54.15-P-1256-03SXS | ||
| Fuse assignment of fuse and relay box in trunk | GF54.15-P-1256-06SXS | ||
| Fuse assignment of front prefuse box | GF54.15-P-1256-07SXS | ||
| Fuse assignment of fuse box in right of cockpit | GF54.15-P-1256-12SXS | ||
| Fuse assignment of fuse box in left of cockpit | GF54.15-P-1256-13SXS | ||

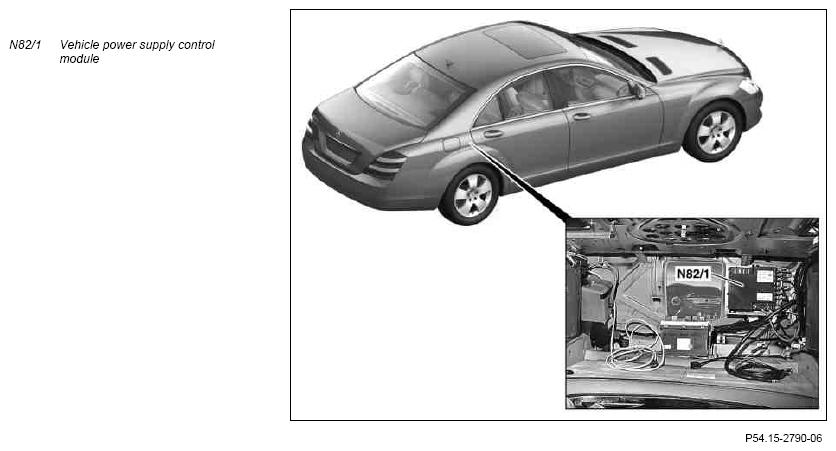

| Fuse assignment of the vehicle power supply control unit | GF54.15-P-1256-17SXS | ||
| Fuse assignment of additional fuse box I | GF54.15-P-1256-19SXS | ||
| Fuse assignment of additional fuse holder II | GF54.15-P-1256-20SXS | ||
| Fuse assignment of additional fuse holder for special protection vehicles | GF54.15-P-1256-21SXS | ||
| Relay assignment of fuse and relay box in left side of engine compartment | GF54.15-P-1257-03SXS | ||
| Relay assignment of fuse and relay box in trunk | GF54.15-P-1257-04SXS |
