Fuse assignment of the vehicle power supply control unit - GF54.15-P-1256-17SXS

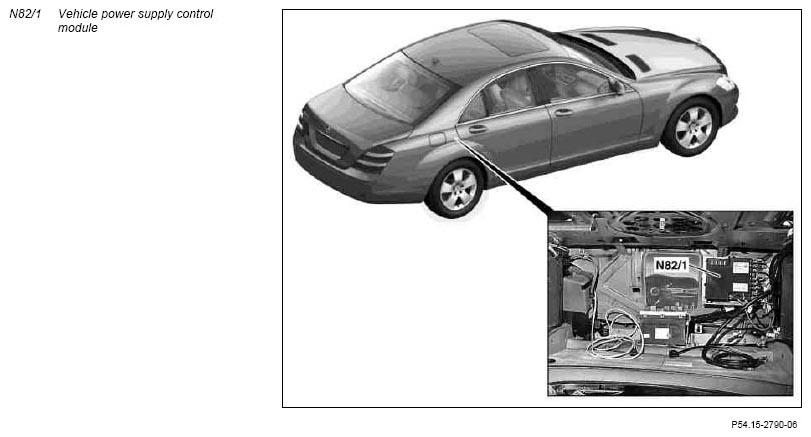

Fig 1: Identifying Vehicle Power Supply Control Module

Courtesy of MERCEDES-BENZ USA

The vehicle power supply control unit is located in the luggage compartment on the rear seat backrest.

Fuse	Clamping device	Cable ID (cable fused)	Fused function	Rating in amperes (A)
f1	30	25.0 RD	Front prefuse box (F32) (via pyrofuse)	-
f2	30	12.0 RD	Valid for code (597) heated windshield: Heated windshield control unit (N61)	125
f3	30	10.0 RD	Right instrument panel fuse box (F1/6)	80
f4	30	16.0 RD	Rear SAM control unit with fuse and relay module (/)N10/2	200
f5	30	16.0 RD	Additional fuse holder for special protection vehicles (F16)	150
f6	30g	16, 0 RD/RDWH	Rear SAM control unit with fuse and relay module (/)N10/2	150
f7	30g	10, 0 RD/RDWH	Front SAM control unit with fuse and relay module (/)N10/1	80
f8	30g	10.0 RDWH	Left instrument panel fuse box (F1/7)	80
f9	30	0.75 RDGN	Front SAM control unit with fuse and relay module (/)N10/1	5
f10	30	-	-	5
