Remove/install rear door - AR72.12-P-0600SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Shown on model 221.0

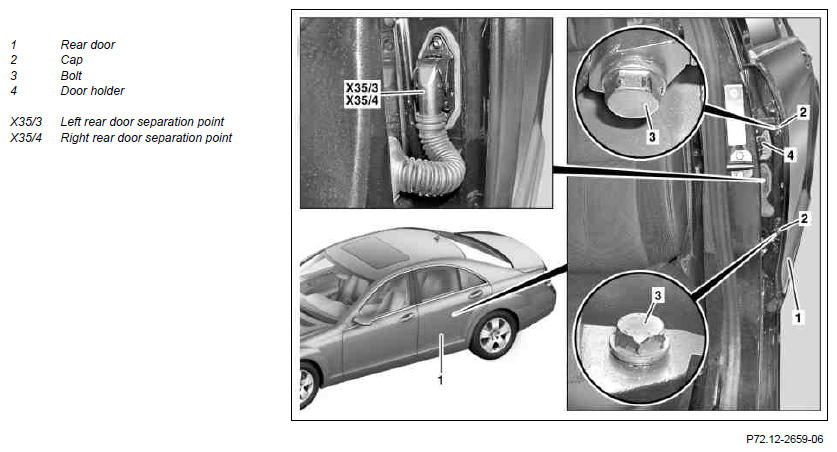

Fig 1: Identifying Rear Door Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open front door
2	Completely move crank window in rear door (1) downward
3	Switch off ignition and remove transmitter key or Keyless Go start/stop button from EIS control unit	Keyless Go start/stop button only on vehicles with code (889) Keyless Go.
4	Disconnect left rear door separation point (X35/3) or right rear door separation point (X35/4)
5	Unclip door holder (4) from B-pillar bracket with suitable screwdriver.	Carefully unclip door holder (4), if necessary, use rag to protect against paint damage.
6	Remove caps (2) from bolts (3)
7	Unscrew screws (3)		*BA72.12-P-1003-01M
8	Open front door (1), remove from door hinges with aid of helper and lay down on suitable subsurface	Remove rear door (1) carefully. Danger of damaging paint.
9	Install in the reverse order
10	Check adjustment of rear door (1), correct if necessary.		AR72.12-P-0650SX
