Remove/install front door - AR72.10-P-0500SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Shown on model 221.0

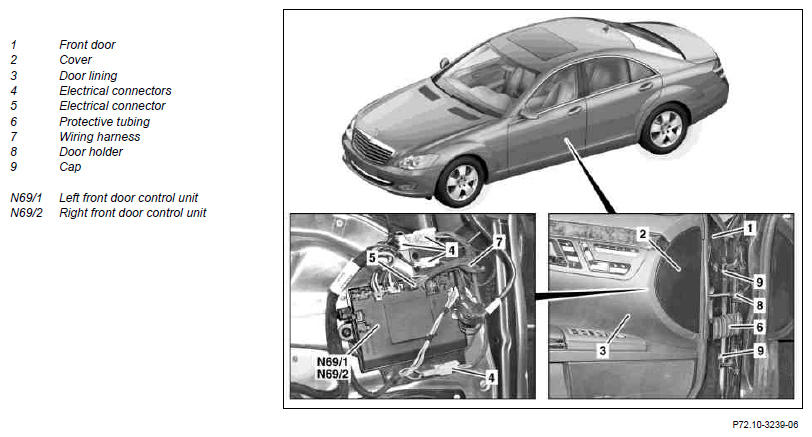

Fig 1: Identifying Front Door Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being jammed or  pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Completely move crank window in front door (1) downward
2	Switch off ignition and remove transmitter key or Keyless Go start/stop button from EIS control unit	Keyless Go start/stop button only on vehicles with code (889) Keyless Go.
3	Unclip cover (2) from door lining (3)		Fig 2
4	Disconnect electrical connectors (4).
5	Disconnect electrical connector (5) from left front door control unit (N69/1) or right front door control unit (N69/2)
6	Unclip protective hose (6) from front door (1).		Fig 2
7	Pull electric wiring harness (7) out of front door (1).
8	Unclip door holder (8) from A-pillar mount with suitable screwdriver.	Carefully unclip door holder (8), if necessary, use rag to protect against paint damage.
9	Remove caps (9) and unscrew bolts below		*BA72.10-P-1003-01Q
10	Remove front door (1) from door hinges with aid of helper and lay down on suitable subsurface	Carefully remove front door (1). Danger of damaging paint on front door (1) and front fender.
11	Install in the reverse order
12	Check adjustment of front door (1), correct if necessary.		AR72.10-P-0550SX
