Remove/install longitudinal member paneling - AR88.80-P-6000SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

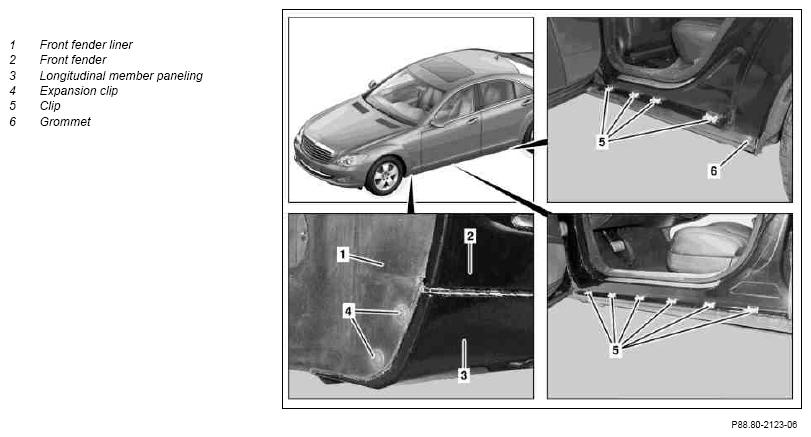

Shown on left side of vehicle

Fig 1: Identifying Longitudinal Member Paneling Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

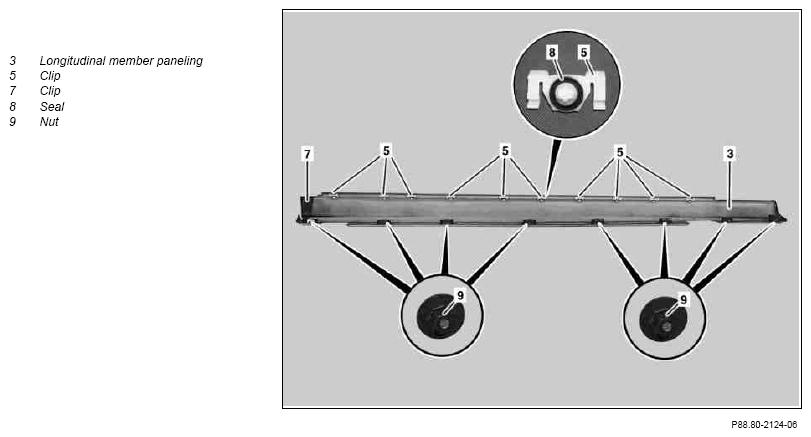

Shown on left longitudinal member paneling

Fig 2: Identifying Longitudinal Member Paneling Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right rear door.		AR72.12-P-0600SX
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
2	Raise vehicle with lifting platform
3	Remove underfloor paneling in area of longitudinal member paneling (3)
4	Remove longitudinal member paneling (3) at bottom on longitudinal member
5	Remove expansion clip (4) from front fender liner (1)
6	Unclip longitudinal member paneling (3), starting at front fender (2)	Installation:  Ensure that longitudinal member paneling (3) is properly seated at all attachment points on longitudinal member to prevent paint damage. Installation:  Insert clip (7) into grommet (6).
			Figure
7	Remove clips (5) on longitudinal member and attach to longitudinal member paneling (3)	Installation:  Ensure that gasket (8) is properly seated.
8	Install in the reverse order

Fig 3: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
