Remove/install engine hood - AR88.40-P-3000SX
MODEL 216, 221

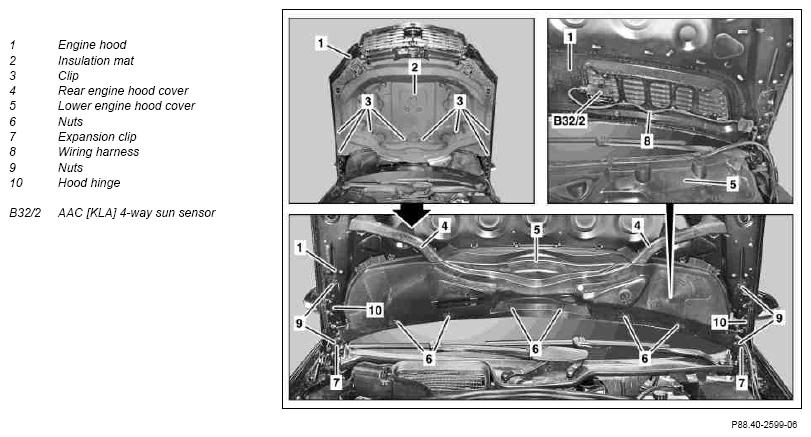

Illustrated on model 221
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove clips (3) and lift sound deadening mat (2) at bottom | ||
| 2 | Remove expansion clips (7) | ||
| 3 | Unscrew nuts (6) from bottom engine hood cover (5) | ||
| 4 | Unclip lower engine hood cover (5) and put down in engine compartment with lines still attached | ||
| 5 | Unclip AAC sun sensors (4 in total) (B32/2), expose wiring harness (8) and lay down in engine compartment | ||
| 6 | Unscrew nut (9) on left and right engine hood hinge (10) and remove engine hood (1). | ||
| 7 | Install in the reverse order | ||
| 8 | Adjust engine hood (1) | AR88.40-P-3020SX | |
| 9 | Check windshield washer system for proper function, adjust windshield washer nozzles if necessary. | ||
| Windshield wipers, windshield washer system and headlamp cleaning system - function check | AP82.30-P-8252SX |
