Adjust engine hood - AR88.40-P-3020SX
MODEL 216, 221

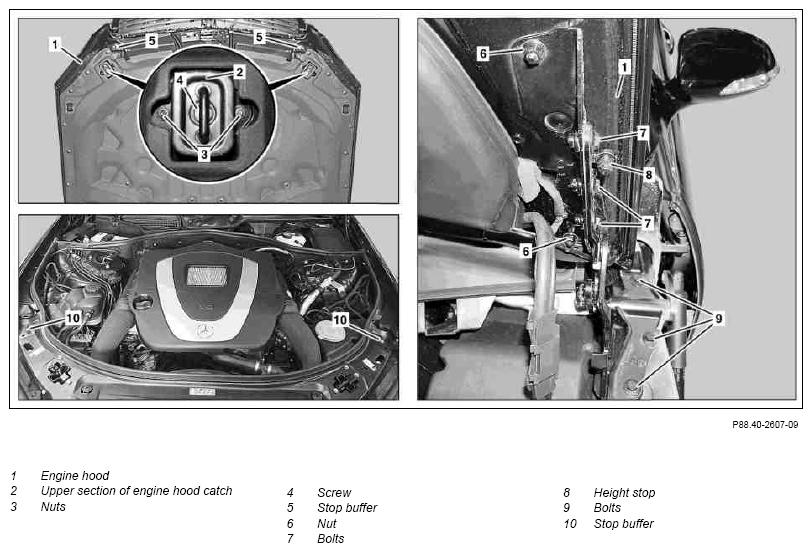

Shown on model 221 on left side of vehicle with front fender removed
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove both engine hood lock top sections (2) | AR88.40-P-3200SX | |
| Adjust in longitudinal and transverse direction | |||
| 2 | Loosen bolts (7), nuts (6) or bolts (9) on left and right engine hood hinge and adjust engine hood (1) in longitudinal and lateral direction | ||
| Model 216 Gap dimensions on hoods, doors and lids |
AR60.00-P-0700-01SC | ||
| *BE60.00-P-1001-01T | |||
| Figure | |||
| Model 221 Gap dimensions on hoods, doors and lids |
AR60.00-P-0700-01SX | ||
| *BE60.00-P-1001-01R | |||
| Figure | |||
| 3 | Tighten bolts (7), nuts (6) or bolts (9). | ||
| *BA88.40-P-1003-01M | |||
| *BA88.40-P-1004-01M | |||
| Adjust height | |||
| 4 | Slightly screw in left and right height stop (8) | ||
| 5 | Loosen bolts (7) and adjust engine hood (1) so that height in the rear area is flush with front fenders. | ||
| 6 | Tighten bolts (7) | *BA88.40-P-1003-01M | |
| 7 | Install both upper engine hood catches (2). | AR88.40-P-3200SX | |
| 8 | Adjust engine hood (1) using bolt (4) on both engine hood catch upper sections (2) so that height is flush with front fenders in front area | ||
| 9 | Adjust left and right height stop (8) so that a strip of paper can be pulled through between the height stop (8) and the corresponding counterelement on the engine hood hinge when the engine hood (1) is closed. | ||
| 10 | Adjust stop buffers (5, 10) so that a strip of paper can be pulled through between the stops buffers (5, 10) and engine hood (1) when the engine hood (1) is closed | ||
| 11 | Check whether engine hood (1) closes properly and is tensioned, adjust if necessary. | The closed engine hood (1) should not have play in the area of the upper engine hood catches (2), i.e. should have only slight tension |
|
| 13 | Check whether engine hood catch lower section s are locked | ||
| 14 | Release engine hood (1) and check whether retaining hood on upper frame cross member is arrested. | ||
| 15 | Repair paint damage |
CHECK VALUES FOR GAPS
| Number | Designation | Model 216 up to model year 2011 | Model 216 as of model year 2011 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1001-01T | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (±0.5) | 3.5 (±0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 3.5 (±0.5) | 3.5 (±0.5) | ||
| Engine hood to A-pillar | Dimension "D" | mm | 4.0 (±0.5) | 4.0 (±0.5) | ||
| Radiator grille/bumper | Dimension "C" | mm | 5.0 (±1.0) | 2.0 (±1.0) | ||
| Engine hood to bumper | Dimension "P" | mm | 5.0 (±1.0) | 5.0 (±1.0) | ||
| Bumper to headlamp | Dimension "Q" | mm | 3.5 (±0.5) | 3.5 (±0.5) | ||
| See picture | AR60.00-P-0700-01SC | AR60.00-P-0700-01SC | ||||
CHECK VALUES FOR GAPS
| Number | Designation | Model 221 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01R | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (±0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 3.5 (±0.5) | ||
| Radiator grille/bumper | Dimension "C" | mm | 5 (±1) | ||
| Engine hood to bumper | Dimension "P" | mm | 5 (±1.5) | ||
| Bumper to headlamp | Dimension "Q" | mm | 3.5 (±0.5) | ||
| Bumper to fender | Dimension "R" | mm | 3.5 (±0.5) | ||
| See picture | AR60.00-P-0700-01SX | ||||
ENGINE HOOD
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA88.40-P-1003-01M | Bolt/nut, engine hood to engine hood hinge | Nm | 8 | 8 |
| BA88.40-P-1004-01M | Screw for engine hood hinge on body | Nm | 10 | 10 |
