Remove/install seat cushion - AR91.10-P-3310SX
MODEL 221.0/1 Seat cushion of front seat
MODIFICATION NOTES
| 22.6.09 | Information for WSS (weight sensing system), code (494) USA version included |
| Remove/install | |||
| When replacing the passenger-side seat cushion, the as-built configuration of the installed WSS (weight sensing system) must be determined | On vehicles with code (494) USA version (up to September 4, 2008) | AH91.60-P-0760-01SX | |
| 1 | Remove left or right front seat | AR91.10-P-1000SX | |
| 2 | Remove stowage tray (1) on front seat | ||
| 3 | Remove paneling on front seat frame | AR91.10-P-1200SX | |
| 4 | Detach backrest frame from front seat | AR91.10-P-3331SX | |
| 5 | Unhook fabric tabs (2) | ||
| 6 | Loosen clamping strips (3, 4) using a suitable screwdriver | ||
| 7 | Disconnect electrical connector (5) for front passenger seat occupied and child seat recognition sensor | On vehicles without code (494) USA version, removal of seat cushion (8) at front passenger seat. | |
| 8 | Disconnect WSS (weight sensing system) electrical connector | ||
| 9 | Disconnect electrical connector (6) | On vehicles with code (401) Front comfort seats, incl. seat heating and seat ventilation. | |
| 10 | Disconnect electrical connector (7) | On vehicles with code (401) Front comfort seats, incl. seat heating and seat ventilation or code (873) Seat heater for left and right front seat. | |
| 11 | Remove seat cushion (8) | ||
| 12 | Install in the reverse order | ||
| 13 | Parameterize weight sensing system (WSS) with STAR DIAGNOSIS | For vehicles with code (494) USA version |
|

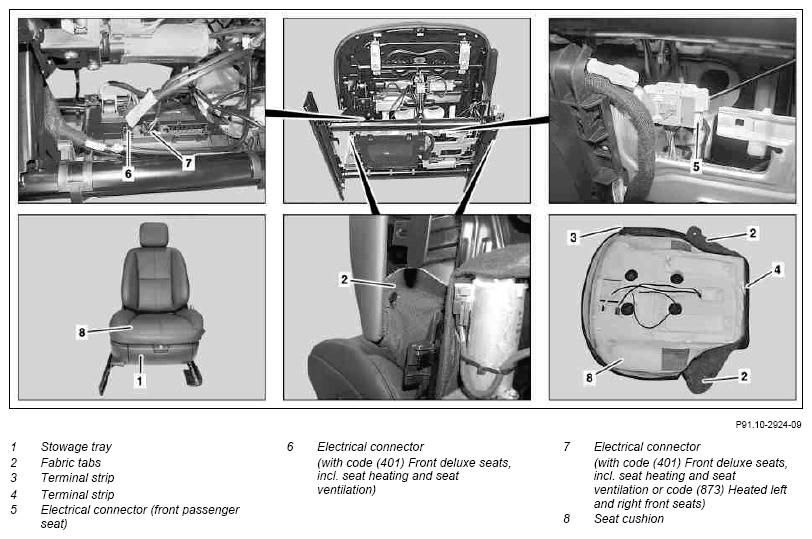

| Figure |
