Remove/install front seat frame trim panels - AR91.10-P-1200SX

MODEL 221.0/1

Fig 1: Identifying Front Seat Frame Trim Panels Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Front Seat Frame Trim Panels Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open stowage compartment (6)

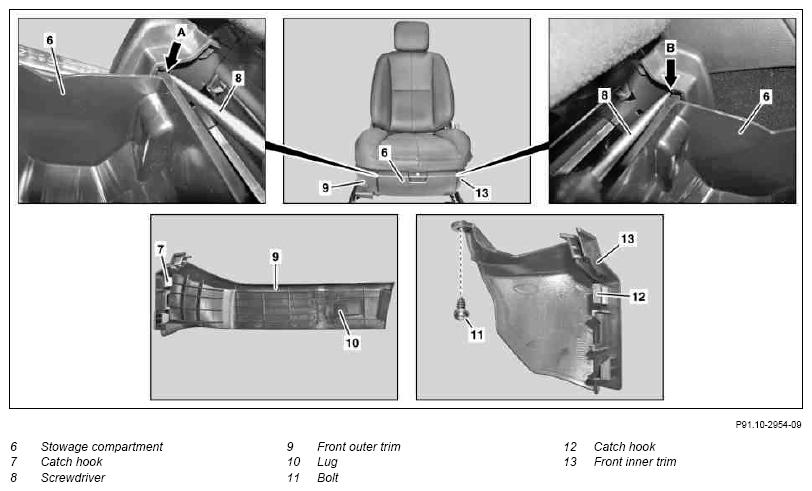

2	Push back catch hooks (7) using suitable screwdriver (8) (arrow A) and detach front outer trim (9) forwards from seat frame	Check tab (10) is correctly seated on seat frame mounting.
3	Unscrew bolt (11)
4	Push back catch hook (12) using suitable screwdriver (8) (arrow B) and detach front inner trim (13) forwards from seat frame
5	Remove left or right front seat		AR91.10-P-1000SX

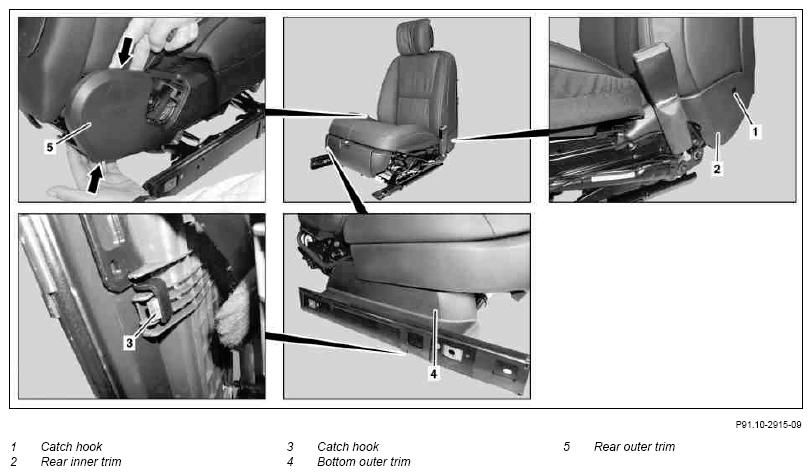

6	Release catch hook (1) and remove rear inner trim (2)
7	Release catch hook (3) and remove bottom outer trim (4)
8	Unclip rear outer trim (5) (arrows) and remove
9	Install in the reverse order
