Remove/install front seat cushion covering - AR91.18-P-1800SX

MODELS 221.0/1

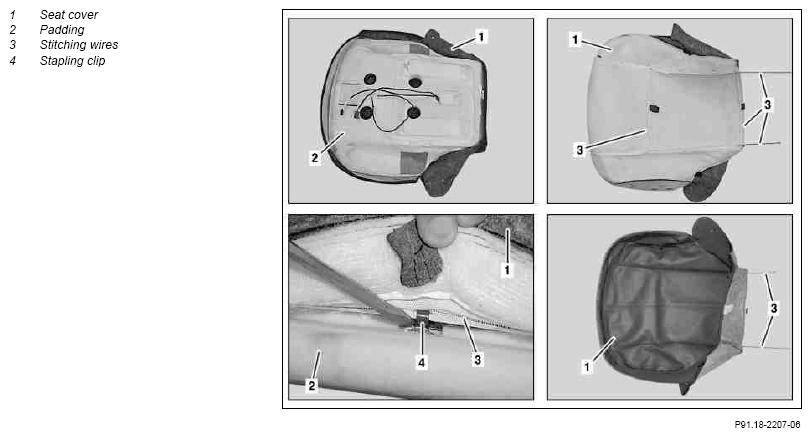

Fig 1: Identifying Front Seat Cushion Covering Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion of left or right front seat		AR91.10-P-3310SX
2	Slip cover (1) over upholstery (2)
3	Unclip staple wires (3) from staple clips (4)	The staple wires (3) are to be fastened to 14 staple clips (4).
4	Remove cover (1) from upholstery (2)	When replacing the cover (1), pull staple wires (3) out of cover (1).
5	Install in the reverse order
