Replace complete A-pillar together with side longitudinal member - AR63.20-P-1150SX

MODEL 221 except CODE (Z07) Top protection

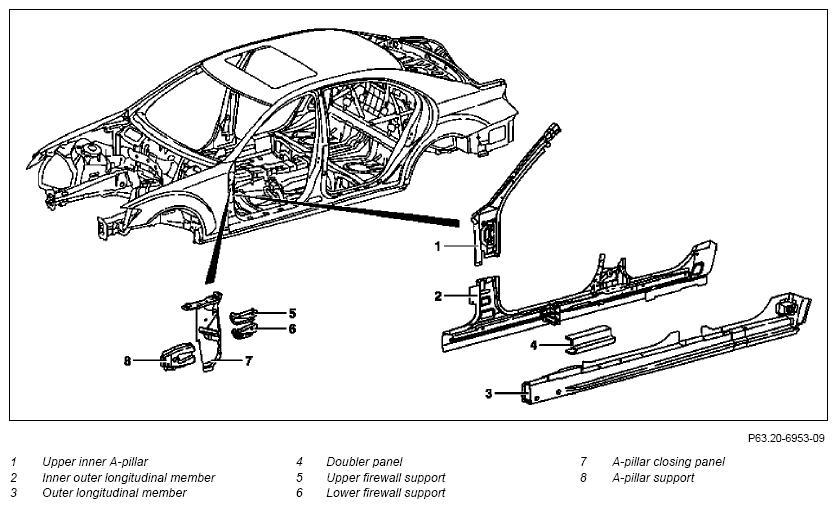

Fig 1: Identifying A-Pillar With Side Longitudinal Member
G10128133Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of death  caused by high voltage used for electric welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding splatter and UV light while welding. Risk of poisoning  caused by inhaling welding fumes. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES General information on repair of vehicles with ultra-strength steels. Failure to observe instructions when straightening/repairing, separating, preparing adhesive points, joining/connecting, resistance spot welding, MIG welding, MIG brazing can lead to considerable damage to ultra-strength steels and their joints. AH60.00-P-0024-01N
NOTES Measures for preventing damage to vehicles or components when performing electric welding work   AH00.00-N-0005-01A
NOTES General information on body repair   AH60.00-N-0001-01A
NOTES Notes on paintwork repairs   AH98.00-P-9408-02A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
NOTES Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
IMPORTANT Notes on various body materials   AH60.00-P-0011-01SX
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
1 Remove A-pillar outer section   AR63.20-P-1102SX
2 Cover all detachable parts remaining in vehicle Tarp (fire-resistant)
3 Equip straightening bench with module members or crossmembers and straightening bracket set IMPORTANT Observe setup plans provided.
Passenger car straightening system (Celette)
Straightening system accessories (Celette)
Straightening systems for passenger cars (Car Bench)
Straightening system accessory (Car Bench)

4 Lift vehicle with two-post lift Two-post lifting platform 3.0-3.5 t, electromechanical
5 Remove stop plugs from jack support points
6 Set vehicle onto straightening bench
7 Fasten vehicle to straightening bench
8 Separate upper inner A-pillar (1), inner outer longitudinal member (2) and outer longitudinal member (3)   AR63.20-P-1150-01SX
SPECIAL TOOL Spot weld milling cutter
Ball cutter, dia. 12 mm
Vario Drill WS 91 spot weld removing tool
BTR Usibor milling cutter, dia. 8X44 mm
BTR Usibor drill bit, dia. 6.7 mm
BTR Usibor milling cutter, dia. 8 mm
BTR Usibor center punch, dia. 8X80 mm
Round wire brush, braided, dia. 70 mm
Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
Cutting disk, Ø 65 mm, 80 m/s (max. 23, 500 rpm)
Hot air gun - 3000 W
Drill
Straight grinder
Angle grinder
Body jig saw
Wet/dry vacuum cleaner
Fig 2
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
9.1 Separate upper firewall support (5), lower firewall support (6), A-pillar closing panel (7) and A-pillar support (8) IMPORTANT Only in the event of severe damage on A-pillar. AR63.20-P-1100-12SX
SPECIAL TOOL Spot weld milling cutter
Ball cutter, dia. 12 mm
Round wire brush, braided, dia. 70 mm
Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
Hot air gun - 3000 W
Drill
Angle grinder
Wet/dry vacuum cleaner
Fig 2
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
10 Prepare upper inner A-pillar (1), inner outer longitudinal member (2) and outer longitudinal member (3) for installation   AR63.20-P-1150-06SX
SPECIAL TOOL Spot weld milling cutter
Round wire brush, braided, dia. 70 mm
Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
Cutting disk, Ø 65 mm, 80 m/s (max. 23, 500 rpm)
Drill
Straight grinder
Angle grinder
Body jig saw
Fig 2
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
11.1 Prepare upper firewall support (5), lower firewall support (6), A-pillar closing panel (7) and A-pillar support (8) for installation IMPORTANT Only in the event of severe damage on A-pillar.
Round wire brush, braided, dia. 70 mm
Drill
AR63.20-P-1100-13SX
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
12.1 Install welding device IMPORTANT Only when replacing A-pillar closing panel (7).
With suspension strut installed AR62.20-P-1286-05SX
With suspension strut removed AR62.20-P-1286-05SY
SPECIAL TOOL Welding device Fig 5
13.1 Install upper firewall support (5), lower firewall support (6), A-pillar closing panel (7) and A-pillar support (8) IMPORTANT Only in the event of severe damage on A-pillar.
Electrode miller
Clamping pliers
Round wire brush, braided, dia. 70 mm
Inverter spot welder
Drill
Wet/dry vacuum cleaner
AR63.20-P-1100-14SX
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
Adhesive *BR00.45-Z-1092-02A
14.1 Remove welding device IMPORTANT Only when replacing A-pillar closing panel (7).
15 Set up side portal frame with inspection and welding device IMPORTANT Observe setup plans provided.
SPECIAL TOOL Side portal frame Fig 2
SPECIAL TOOL Inspection and welding device Figure
16 Install upper inner A-pillar (1), inner outer longitudinal member (2), doubler panel (4) and outer longitudinal member (3)   AR63.20-P-1100-10SX
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device
Electrode miller
BTR Usibor drill bit, dia. 6.7 mm
BTR Usibor center punch, dia. 8X80 mm
C-clamps
Clamping pliers
Manual temporary fastener, Ø 6.4 mm, clamping area 0 to 15 mm, identification color silver
Round wire brush, braided, dia. 70 mm
Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 rpm)
Blind rivet/punch riveting method
MIG MAG gas welder (steel, brazing, aluminum)
Inverter spot welder
Drill
Angle grinder
Wet/dry vacuum cleaner
Figure
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
Adhesive *BR00.45-Z-1092-02A
Rivet *BR00.45-Z-1001-13A
Rivet *BR00.45-Z-1012-13A
17 Install A-pillar outer section   AR63.20-P-1102SX
18 Remove side portal frame with inspection and welding device
19 Unfasten vehicle from straightening bench
20 Install stop plugs in jack support points
21 Lift vehicle with two-post lift Two-post lifting platform 3.0-3.5 t, electromechanical
22 Remove straightening bench.
23 Clean repair areas
24 Prime repair area using primer filler
25 Paint repair areas and adjacent surfaces
26 Carry out seam sealing after repairs IMPORTANT Supplement standard sealants with MB body sealant. AR97.10-P-4000SX
Sealant *BR00.45-Z-1003-01A
Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
27 Apply additional cavity preservation   AR97.20-P-1500SX
NOTES Notes on cavity preservation
Combination pressure spray gun (corrosion protection)
  AH97.20-P-0001-01B
    MB cavity wax preservation, 1 l *BR00.45-Z-1003-05A
28 Remove tarp IMPORTANT On all covered parts remaining in vehicle.
Fig 2: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G07692600Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Side Portal Frame (210 589 17 23 00)
G07321115Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Inspection And Welding Device (221 589 00 23 00)
G07321116Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Welding Device (221 589 01 23 00)
G07692601Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
BR00.45-Z-1003-05A Cavity sealant, solvent-free (1 l container) A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1001-13A Blind rivet 6.4X14 A 003 990 35 97
BR00.45-Z-1012-13A Blind rivet 6.5X12.5 A 004 990 16 97
