Notes on different body materials - AH60.00-P-0011-01SX

WARNING: This page does not describe the selected car, but rather 202 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

Model 190, 216, 221

MODEL 190, 216, 221

Shown on model 221 warm formed steel (USIBOR)

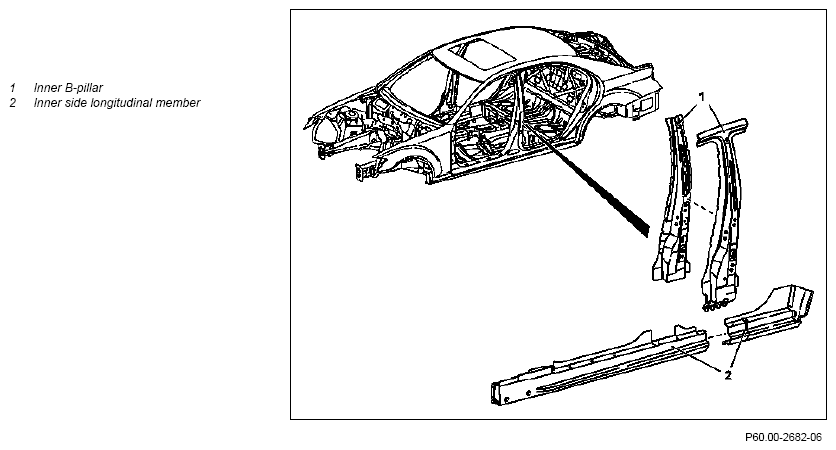

Fig 1: Identifying Inner B-Pillar And Inner Side Longitudinal Member (Shown On Model 221)
G10035830Courtesy of MERCEDES-BENZ USA

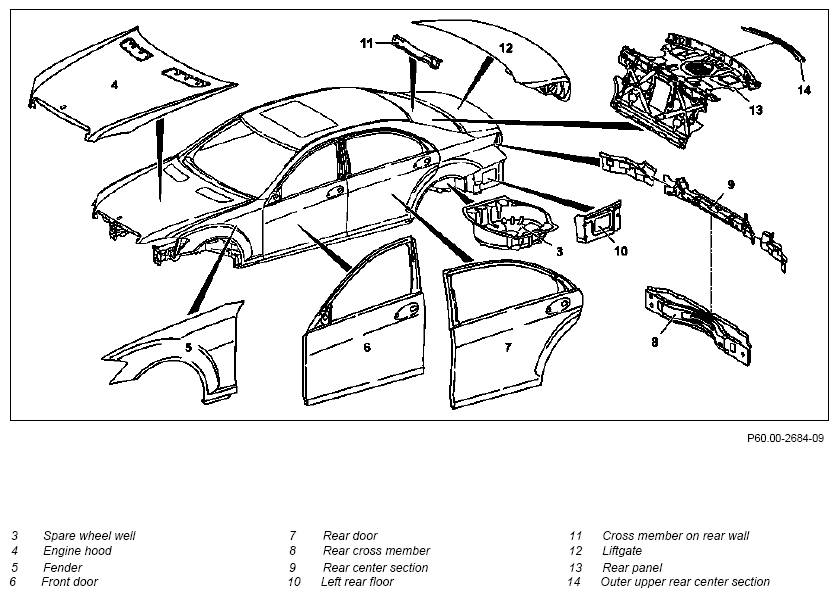

Fig 2: Identifying Body Components (Shown On Model 221)
G10035831Courtesy of MERCEDES-BENZ USA

Shown on model 221 plastic component/aluminum component
