Remove/install A-pillar outer section - AR63.20-P-1102SX

MODEL 221

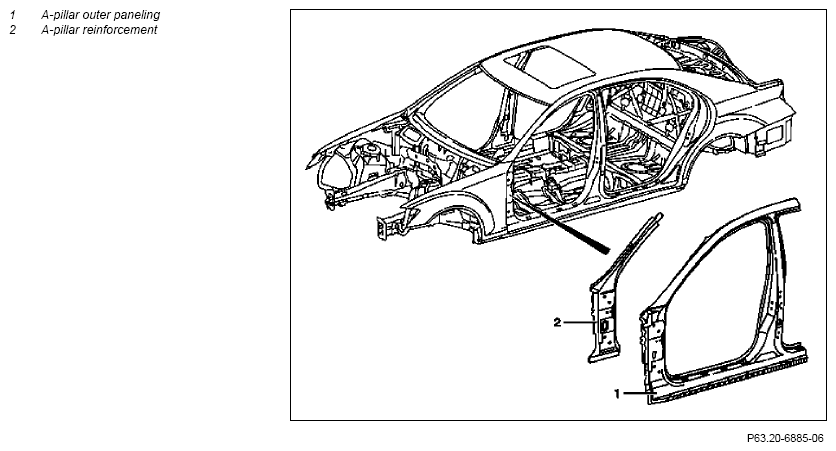

Fig 1: Identifying A-Pillar Outer Section Remove/Install Components
G10128128Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of death  caused by high voltage used for electric welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding splatter and UV light while welding. Risk of poisoning  caused by inhaling welding fumes. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES General information on repair of vehicles with ultra-strength steels. Failure to observe instructions when straightening/repairing, separating, preparing adhesive points, joining/connecting, resistance spot welding, MIG welding, MIG brazing can lead to considerable damage to ultra-strength steels and their joints. AH60.00-P-0024-01N
NOTES Measures for preventing damage to vehicles or components when performing electric welding work   AH00.00-N-0005-01A
NOTES General information on body repair   AH60.00-N-0001-01A
NOTES Notes on paintwork repairs   AH98.00-P-9408-02A
NOTES Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
1 Remove front door Vehicles without code (Z07) Top protection AR72.10-P-0500SX
Vehicles with code (Z07) Top protection AR72.10-P-0500SXS
2 Remove front fender   AR88.10-P-1000SX
3 Remove engine hood   AR88.40-P-3000SX
4 Remove door sill molding IMPORTANT Remove door sill molding from front door.
Vehicles without code (Z07) Top protection AR68.30-P-4100SX
Vehicles with code (Z07) Top protection AR68.30-P-4100SXS
5 Remove windshield Vehicles without code (Z07) Top protection AR67.10-P-1000SX
Vehicles with code (Z07) Top protection AR67.10-P-1000SXS
6 Cover all detachable parts remaining in vehicle with tarp
7 Equip straightening bench with module members or crossmembers and straightening bracket set IMPORTANT Observe setup plans provided.
Passenger car straightening system (Celette)
Accessories for straightening system (Celette)
Straightening systems for passenger cars (Car Bench)
Accessories for straightening system (Car Bench)

8 Lift vehicle with two-post lift Two-post lifting platform 3.0-3.5 t, electromechanical
9 Remove stop plugs from jack support points
10 Set vehicle onto straightening bench
11 Fasten vehicle to straightening bench
12 Set up side portal frame with inspection and welding device IMPORTANT Observe setup plans provided.
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device Figure
13 Check/straighten installation position of A-pillar
14 Remove side portal frame with inspection and welding device
15 Separate A-pillar outer paneling (1) and A-pillar reinforcement (2)   AR63.20-P-1102-01SX
BTR-Usibor drill bit, dia. 6.7 mm, BTR Usibor center punch, dia. 8X80 mm Drill bits and milling cutters for high-strength steels (USIBOR) and rivets
Drill
Straight grinder
Angle grinder
Body jig saw
Wet/dry vacuum cleaner

SPECIAL TOOL Spot weld milling cutter Figure
SPECIAL TOOL Set of cutting templates Fig 5
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
16 Prepare A-pillar outer paneling (1) and A-pillar reinforcement (2) for installation   AR63.20-P-1102-02SX
Drill
Straight grinder
Angle grinder
Body jig saw

SPECIAL TOOL Set of cutting templates Fig 5
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
17 Set up side portal frame with inspection and welding device IMPORTANT Observe setup plans provided.
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device Figure
18 Install A-pillar outer paneling (1) and A-pillar reinforcement (2)   AR63.20-P-1102-03SX
  BTR-Usibor drill bit, dia. 6.7 mm, BTR Usibor center punch, dia. 8X80 mm Drill bits and milling cutters for high-strength steels (USIBOR) and rivets
Blind rivet/punch riveting method
MIG MAG gas welder (steel, brazing, aluminum)
Inverter spot welder
Drill
Straight grinder
Angle grinder
Body jig saw
Wet/dry vacuum cleaner

    SPECIAL TOOL Side portal frame Figure
    SPECIAL TOOL Inspection and welding device Figure
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Rivet *BR00.45-Z-1001-13A
    Polygrip countersunk-head rivet, 6.4X14 *BR00.45-Z-1002-13A
    Rivet *BR00.45-Z-1012-13A
    Adhesive *BR00.45-Z-1092-02A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
19 Unfasten vehicle from straightening bench
20 Install stop plugs in jack support points
21 Lift vehicle with two-post lift Two-post lifting platform 3.0-3.5 t, electromechanical
22 Remove straightening bench.
23 Clean repair areas
24 Prime repair area using primer filler
25 Paint repair areas and adjacent surfaces
26 Carry out seam sealing after repairs IMPORTANT Supplement standard sealants with MB body sealant. AR97.10-P-4000SX
Sealant *BR00.45-Z-1003-01A
Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
27 Apply additional cavity preservation   AR97.20-P-1500SX
    MB cavity wax preservation, 1 l *BR00.45-Z-1003-05A
NOTES Notes on cavity preservation Combination pressure spray gun (corrosion protection) AH97.20-P-0001-01B
28 Remove tarp IMPORTANT On all covered parts remaining in vehicle.
29 Install windshield Vehicles without code (Z07) Top protection AR67.10-P-1000SX
Vehicles with code (Z07) Top protection AR67.10-P-1000SXS
30 Install door sill molding IMPORTANT Install door sill molding on front door.
Vehicles without code (Z07) Top protection AR68.30-P-4100SX
Vehicles with code (Z07) Top protection AR68.30-P-4100SXS
31 Install engine hood   AR88.40-P-3000SX
32 Install front fender   AR88.10-P-1000SX
33 Install front door Vehicles without code (Z07) Top protection AR72.10-P-0500SX
Vehicles with code (Z07) Top protection AR72.10-P-0500SXS
Fig 2: Identifying Side Portal Frame (210 589 17 23 00)
G07321115Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Inspection And Welding Device (221 589 00 23 00)
G07321116Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G07692600Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Set Of Cutting Templates (221 589 03 23 00)
G07321169Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
BR00.45-Z-1003-05A Cavity sealant, solvent-free (1 l container) A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1001-13A Blind rivet 6.4X14 A 003 990 35 97
BR00.45-Z-1012-13A Blind rivet 6.5X12.5 A 004 990 16 97
BR00.45-Z-1002-13A Polygrip countersunk-head rivet, 6.4X14 A 003 990 86 97 05
