Retrofitting ski bag - AN91.22-P-0001M

MODEL 220

The ski bag can hold two pairs of skis. When retrofitting install 78-liter fuel tank with ski bag recess instead of the standard fuel tank.

(Eliminated on vehicles with code 308, refrigerator in rear center armrest).

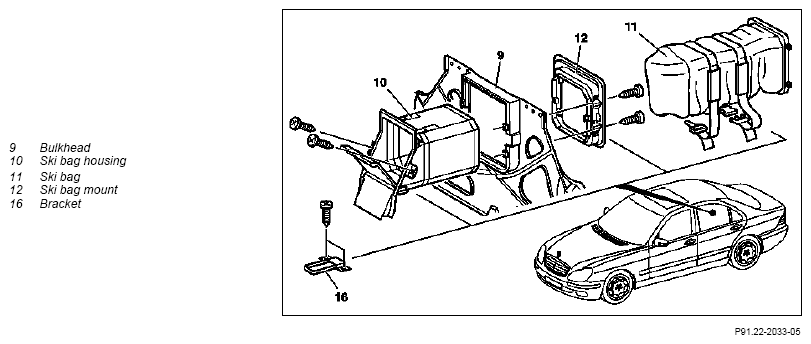

Fig 1: Identifying Ski Bag Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

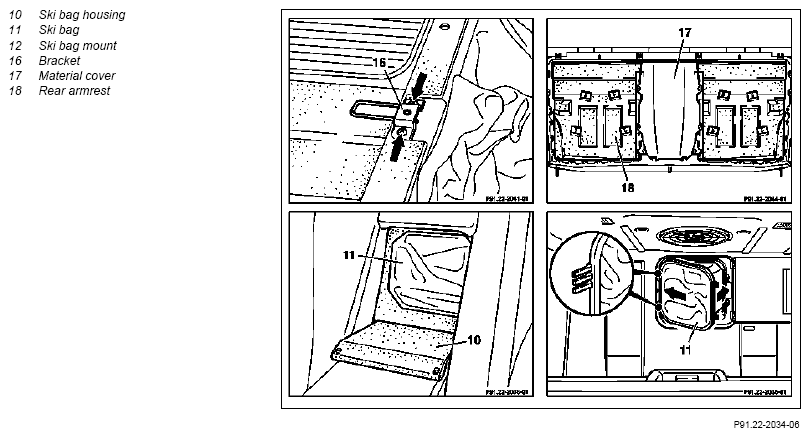

Fig 2: Identifying Ski Bag Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Fuel presents an explosion hazard and is toxic when inhaled or absorbed. Contact with fuel can cause skin and eye injury	Fire, open lights and smoking prohibited. Fill and store fuel only in containers intended for this purpose and marked accordingly. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Notes on ski bag	Model 220	AH91.22-P-0001-01A
	Removal
1	Disconnect ground lead on battery	Except on vehicles with refrigerator in rear center armrest (code 308)
			AR54.10-P-0003I
2.1	Completely remove rear seat
		Except on vehicles with refrigerator in rear center armrest (code 308)	AR91.12-P-1620MA
		With bucket seats	AR91.12-P-1620M
2.2	Remove rear seat cushion
		Only on vehicles with refrigerator in rear center armrest (code 308)	AR91.12-P-1020MA
		With bucket seats	AR91.12-P-1020M
3.1	Remove material cover (17) from rear armrest (18)	Only on vehicles with rear bench seat, except with refrigerator in rear center armrest (code 308)
3.2	Remove center rear seat armrest	Except on vehicles with refrigerator in rear center armrest (code 308) Part eliminated
		Only on vehicles with bucket seats	AR91.12-P-1620M
4	Remove stowage compartment from rear seats	Only on vehicles with right and left multi-contour backrest
			AR91.12-P-1760M
5	Remove insulating mat in rear	Except on vehicles with refrigerator in rear center armrest (code 308)
6	Remove trunk paneling	The rear wall paneling and floor covering is eliminated except on vehicles with refrigerator in rear center armrest (code 308)
			AR68.30-P-4600M
7	Remove fuel tank	Except on vehicles with refrigerator in rear center armrest (code 308)
			AR47.10-P-4100IA
	Installation
8	Install fuel tank	Except on vehicles with refrigerator in rear center armrest (code 308)
			AR47.10-P-4100I
9	Retrofit ski bag housing	Except on vehicles with refrigerator in rear center armrest (code 308)	AN91.22-P-0001-03M
10	Install trunk paneling	Except on vehicles with refrigerator in rear center armrest (code 308) The floor covering is a new part
			AR68.30-P-4600M
11	Screw bracket (16) for carabiner hook to cross member below rear seat cushion	Install short bracket (61 mm) on vehicles with bucket seats and long bracket (91 mm) on vehicles with rear bench seat.
12	Complete vehicle
13.1	Remove refrigerator from rear armrest and put into trunk (part remains with customer)	Only on vehicles with refrigerator in rear center armrest (code 308) See Owner's Manual
14	Insert ski bag (11) into ski bag mount (12) and close cover	Insert side with long prongs (see magnified section) into ski bag mount on left and then clip short prongs in on right side
15	Fill fuel tank	Except on vehicles with refrigerator in rear center armrest (code 308)
			AR47.10-P-4001B
	Checking
16	Perform version coding for tank version	Except on vehicles with refrigerator in rear center armrest (code 308) See STAR diagnosis
17	Check for proper function	See Owner's Manual
