Check basic position of camshafts - AR05.20-P-6010OM

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642

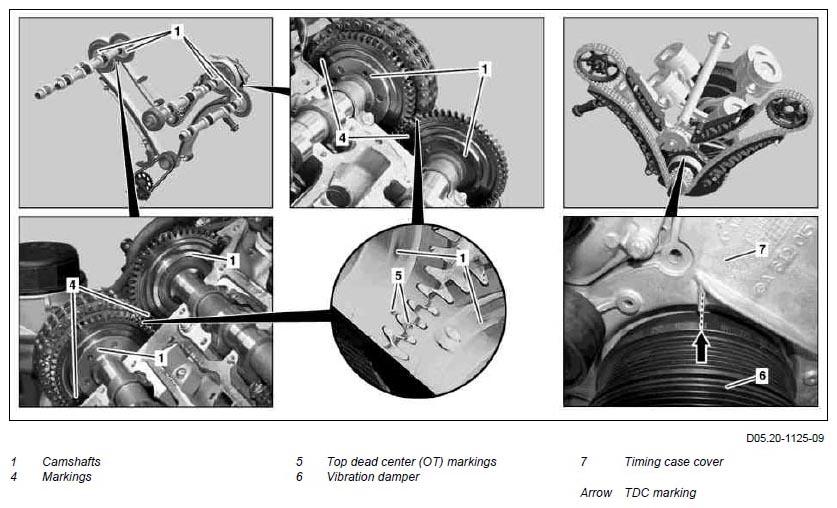

Fig 1: Checking Basic Position Of Camshafts (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

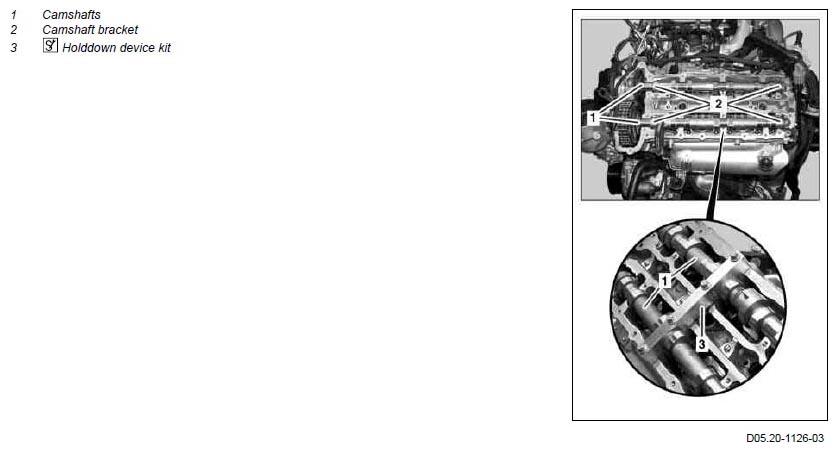

Fig 2: Checking Basic Position Of Camshafts (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cylinder head covers	Model 164, 251	AR01.20-P-5014GZB
		Model 203, 209 right cylinder head cover	AR01.20-P-5012PI
		Model 203, 209 left cylinder head cover	AR01.20-P-5013PI
		Model 204	AR01.20-P-5014CO
		Model 207, 212	AR01.20-P-5014OGE
		Model 211	AR01.20-P-5014TI
		Model 221	AR01.20-P-5014SXI
		Model 219	AR01.20-P-5014TQ
		Model 461, 463	AR01.20-P-5014GY
2	Attach set of hold-down devices (3) to middle camshaft bearing of the cylinder heads	The set of hold-down devices (3) assumes function of camshaft bearings and relieve the load on camshaft brackets (2).
2			Figure
	Checking
3	Set piston on the cylinder 1 to ignition top dead center (OT)	Turn engine at vibration damper (6) in direction of engine rotation until top dead center markings (5) on camshafts (1) stand opposite each other and markings (4), seen in the direction of travel, are aligned on the left side to the upper edge of the cylinder head. The TDC marking (arrow) on vibration damper (6) must be aligned with stay on timing case cover (7). If basic position of camshafts (1) is not OK, timing chain must be checked for damage or chain elongation.
4	Install in the reverse order

Fig 3: Identifying Hold down Device Kit (642 589 00 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
