Remove/install flywheel/drive plate - AR03.30-P-8001GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

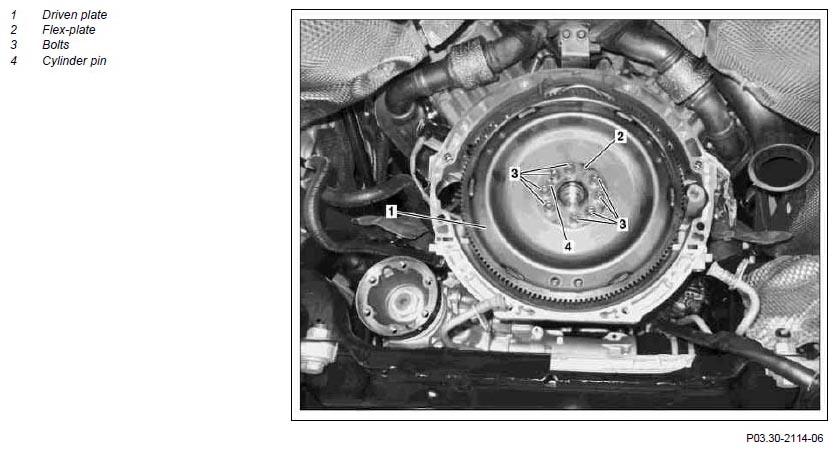

Fig 1: Identifying Flywheel/Drive Plate Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Turbocharger without coolant cooling:

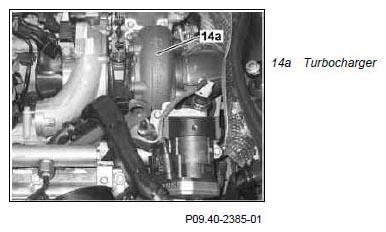

Fig 2: Identifying Turbocharger Without Coolant Cooling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Turbocharger with coolant cooling:

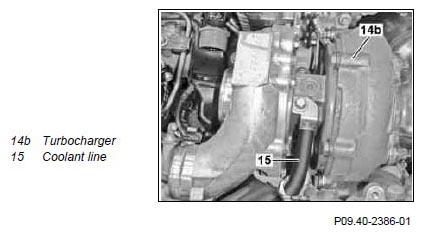

Fig 3: Identifying Turbocharger With Coolant Cooling

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove automatic transmission	Model 164	AR27.10-P-0500GZ
1	Remove automatic transmission	Model 251	AR27.10-P-0500RTA
2	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000GZB
3	Loosen bolts (3)	Engines with turbocharger (14a) without coolant cooling Do not use an impact wrench/driver or compressed air tool in order to unscrew and screw in the bolts (3), otherwise the threads in the crankshaft will be damaged.
4	Remove retaining lock for crankshaft/starter ring gear	Engines with turbocharger (14a) without coolant cooling	AR03.30-P-5000GZB
5.1	Unscrew bolts (3), remove driven plate (1) and flex plate (2) from crankshaft	Engines with turbocharger (14a) without coolant cooling Reinstall flex plate (2) in same position because bulging caused by bolts (3) may result in incorrect torque. Attach colored marking on flex plate (2) to driven plate (1).
5.2	Remove driven plate (1) from crankshaft	Engines with turbocharger (14b) with coolant cooling	AR03.30-P-8001-02MM
			Figure
			Figure
	Install
6.1	Mount driven plate (1) on crankshaft	Engines with turbocharger (14b) with coolant cooling Install new bolts (3) because the connection may become loose if reused or the bolts of the flywheel (3) may break off.	AR03.30-P-8001-02MM
			*BA03.30-P-1002-01G
			Figure
			Figure
6.2	Install driven plate (1) with flex plate (2) on crankshaft and tighten bolts (3) finger-tight.	Engines with turbocharger (14a) without coolant cooling Observe previously installed marking on flex plate (2) in relation to driven plate (1). The cylinder pin (4) determines the installation location of drive plate (1). Replace bolts (3).
7	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000GZB
8	Fully tighten bolts (3)	Engines with turbocharger (14a) without coolant cooling
8	Fully tighten bolts (3)		*BA03.30-P-1002-01G
9	Remove retaining lock for crankshaft/starter ring gear		AR03.30-P-5000GZB
10	Install automatic transmission	Model 164	AR27.10-P-0500GZ
10	Install automatic transmission	Model 251	AR27.10-P-0500RTA
11	Carry out initialization	If a new drive plate is installed, perform initialization in the CDI control unit with STAR Diagnosis in the menu point "Control unit adaptation".
11	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 642
BA03.30-P-1002-01G	Bolt connecting two-mass flywheel/drive plate to crankshaft	Stage 1	Nm	45
BA03.30-P-1002-01G	Bolt connecting two-mass flywheel/drive plate to crankshaft	Stage 2	∠°	90

Fig 4: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Wrench Socket (001 589 65 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
