Remove/install flywheel/clutch plate - AR03.30-P-8001-02MM

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

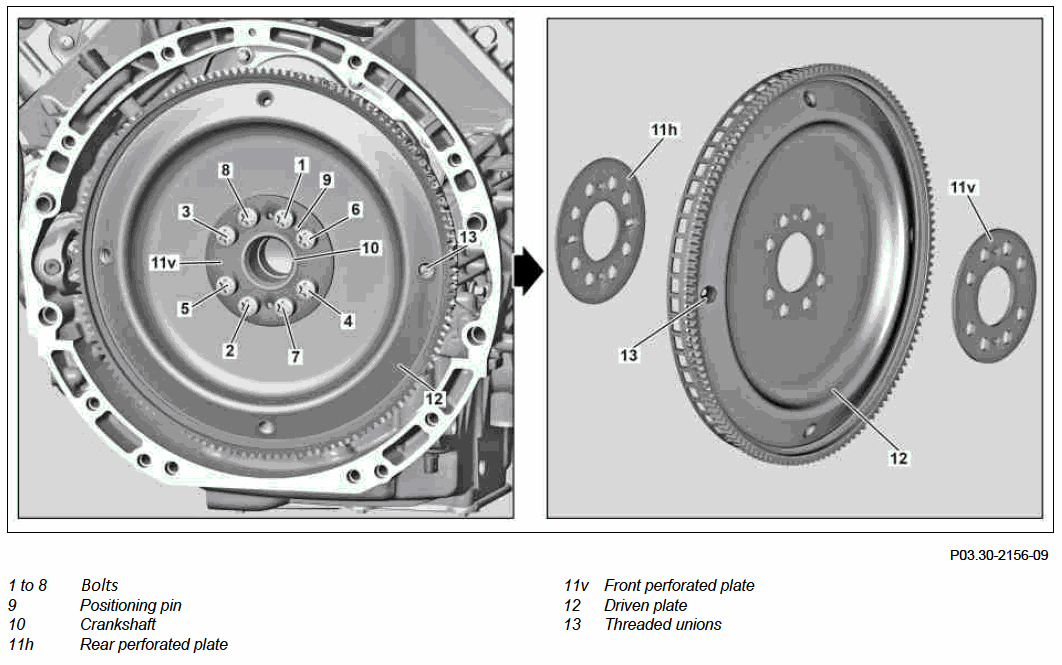

Fig 1: Removing/Installing Flywheel/Clutch Plate
G00544420Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Detaching:

IMPORTANT: Do not use any impact wrench/driver or compressed air tool to screw the bolts (1 to 8) in and out. The thread in the crankshaft (10) can get damaged otherwise.
  1. Insert retaining lock for starter ring gear and block engine. If necessary rotate engine at center bolt of crankshaft (10) until the retaining lock latches correctly in the starter ring gear.
  2. Loosen screw/bolts (1 to 8) as per figure in the numerical sequence.
  3. Remove retaining lock.
  4. Remove screw/bolts (1 to 8) and front perforated plate (11v).
  5. Remove drive plate (12)
  6. Remove rear perforated plate (11h).

Checking:

  1. Check drive plate (12) for damage.

    In case of damaged or loose threaded unions (13), drive plate (12) must be replaced.

  2. Check positioning pin (9) on crankshaft (10) and replace if necessary.

Attaching:

NOTE: Bolts (1 to 8) as well as the front and rear perforated plate (11h, 11v) must be replaced after each disassembly.
IMPORTANT: Faulty installation or swapping of the perforated plates (11h, 11v) leads to engine and transmission damage!
IMPORTANT: Observe numerical sequence as per the figure when tightening the screw/bolts (1 to 8).
  1. Position rear perforated plate (11h) on the crankshaft (10). The rear perforated plate (11h) has a disc thickness of 2 mm.
  2. Position drive plate (12) on the crankshaft (10).
  3. Position front perforated plate (11h) on the crankshaft (10). The front perforated plate (11h) has a disc thickness of 3.5 mm.
  4. Screw in bolts (1 to 8) by hand and tighten finger-tight. Tightening of screw/bolts (1 to 8) must take place in four stages according to the numerical sequence shown in the figure.
  5. Insert retaining lock for starter ring gear and block engine. If necessary rotate engine at center bolt of crankshaft (10) until the retaining lock latches correctly in the starter ring gear.
  6. Tighten bolts (1 to 8) to Stage 1. Observe correct sequence (1 to 8) shown in Fig 2.
  7. Tighten bolts (1 to 8) to Stage 2. Observe correct sequence (1 to 8) shown in Fig 2.
  8. Remove retaining lock
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 642
BA03.30-P-1002-01G Bolt connecting two-mass flywheel/drive plate to crankshaft Stage 1 Nm 45
Stage 2 ∠° 90
Fig 2: Removing/Installing Flywheel/Clutch Plate
G00544420Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
