Remove/install belt pulley/vibration damper - AR03.30-P-1600GZB: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Removes strut tower brace | Model 164.8 only |
AR62.30-P-2500GY |
| 2 | Remove engine trim panel | Model 164 only | AR01.10-P-2405GZB |
| 3 | Remove poly - V belt (3) | AR13.20-P-0001GZB | |
| 4 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000GZB | |

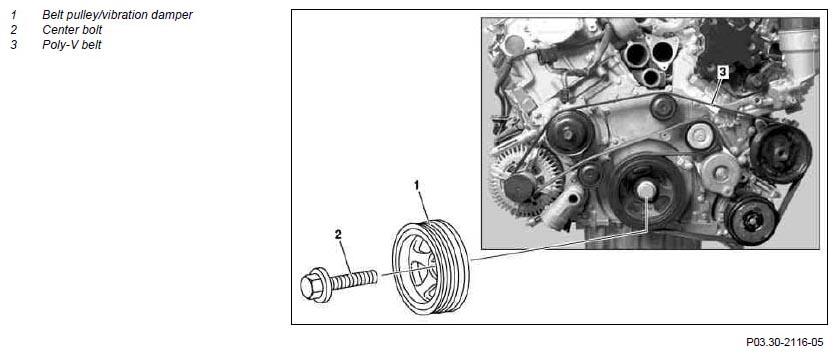

| 5 | Remove center bolt (2) from the belt pulley/vibration damper (1) | *BA03.30-P-1001-01G | |
| 6 | Remove belt pulley/vibration damper (1) | ||
| 7 | Install in the reverse order | ||
| Checking | |||
| 8 | Inspecting belt pulley/vibration damper (1) for axial and radial runout | AR03.30-P-1600-01PI | |
| Permissible difference at vibration damper | *BE03.30-P-1001-02D | ||
| Fig 2 | |||
| Fig 3 | |||
| 9 | Install in the reverse order |
CHECK VALUES FOR BELT PULLEY/VIBRATION DAMPER
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BE03.30-P-1001-02D | Permissible difference at vibration damper | Radial runout | mm | 0.4 |
| Lateral trueness | mm | 0.4 | ||
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BA03.30-P-1001-01G | Central bolt for vibration damper | Stage 1 | Nm | 200 |
| Stage 2 | ∠° | 90 | ||
| Stage 3 | ∠° | 90 | ||
