Inspecting belt pulley/vibration damper for axial and radial runout - AR03.30-P-1600-01PI

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
TEST VALUES FOR BELT PULLEY/VIBRATION DAMPER

Number Designation Engine 642
BE03.30-P-1001-02D Permissible difference at vibration damper Radial runout mm 0.4
Axial runout mm 0.4
Fig 1: Identifying Dial Indicator (001 589 53 21 00)
G07252968Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: Identifying Dial Indicator Holder (363 589 02 21 00)
G07252969Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Bolt dial gage holder (03) SPECIAL TOOL onto timing case cover.
  2. Insert dial gage (04) SPECIAL TOOL into dial gage holder (03) SPECIAL TOOL .
  3. Position tracer pin (05) of dial gage (04) SPECIAL TOOL at measuring point (B).
  4. Rotate belt pulley/vibration damper (62) by hand, inspect axial runout.

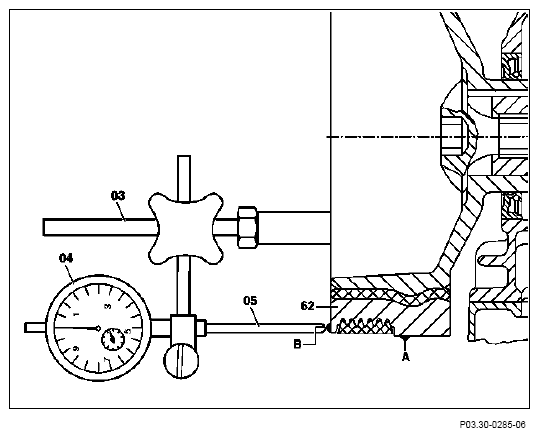

    Fig 3: Inspecting Belt Pulley/Vibration Damper Axial Runout
    G07252970Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  5. Position tracer pin (05) of dial gage (04) SPECIAL TOOL at measuring point (A).
  6. Rotate belt pulley/vibration damper (62) by hand, inspect smooth operation.
