Check basic position of balancing shaft - AR03.20-P-3637OM

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642

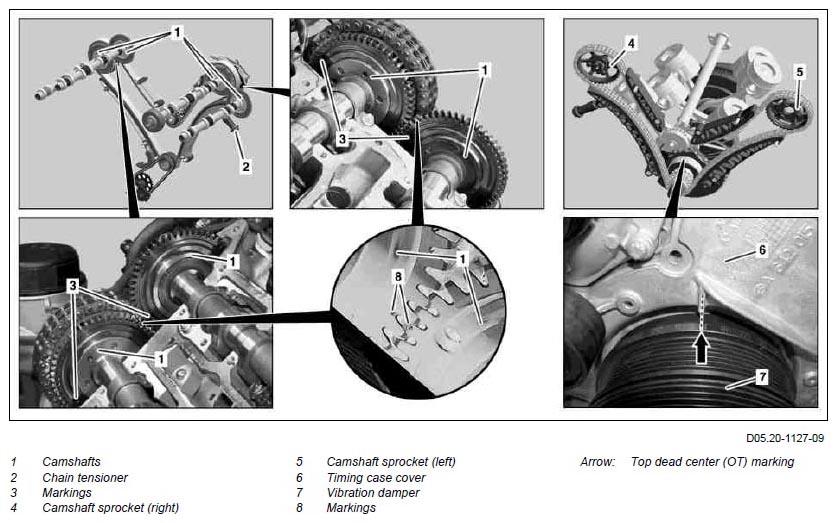

Fig 1: Checking Basic Position Of Balancing Shaft (1 Of 2)
G06877955Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

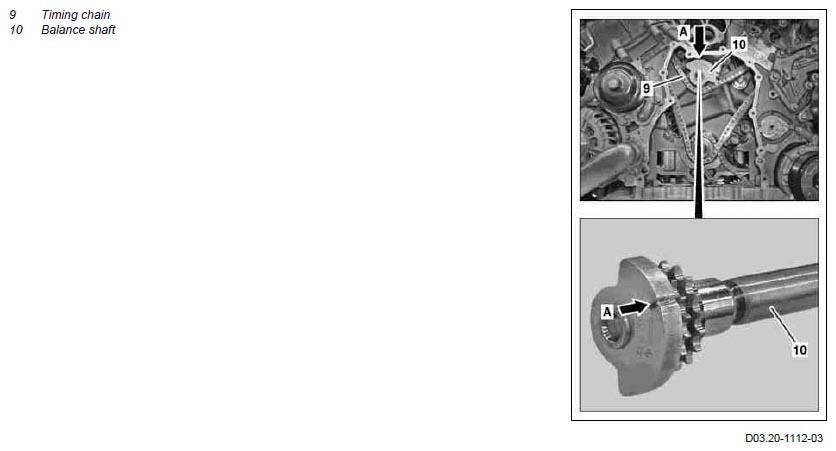

Fig 2: Checking Basic Position Of Balancing Shaft (2 Of 2)
G06877956Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Removing
1 Place camshafts (1) in basic position   AR05.20-P-6010OM
2 Remove timing case cover (6) IMPORTANT The crankshaft must not turn while the vibration damper (7) is being removed.
Model 164 AR01.40-P-8000GZB
Model 203, 209 AR01.40-P-8000PI
Model 204 AR01.40-P-8000CO
Model 211 AR01.40-P-8000TI
Model 219.322 AR01.40-P-8000TQ
Model 207, 212, 221 AR01.40-P-8000SXI
Model 251.020/022/122 AR01.40-P-8000RTB
Models 461, 463 AR01.40-P-8000GY
INSPECT Checking
3 Install timing case cover (6) and vibration damper (7) provisionally without applying sealant IMPORTANT Only perform if crankshaft was turned.
4 The top dead center marking (arrow) of the vibration damper (7) must be flush with the stay on timing case cover (6); align if necessary IMPORTANT Only perform if crankshaft was turned.
5 Remove timing case cover (6) and vibration damper (7) IMPORTANT Only perform if crankshaft was turned.
6 The markings (8) on the camshafts (1) must be aligned with each other and the markings (3) on camshafts (1) must, seen in the direction of travel, be aligned on the left side to the cylinder head upper edge IMPORTANT If markings (8) are no aligned, or if markings (3), seen in the direction of travel, are not aligned on the left side to the cylinder head upper edge, then timing chain (9) must be placed again on camshaft sprockets (4, 5). Refer to: ↓,
Remove/install camshaft sprocket AR05.20-P-6040OM
7 The marking (arrow A) on balance shaft (10) must point vertically upwards IMPORTANT If marking (arrow A) does not point vertically upwards, remove camshaft sprocket (4) and place timing chain (9) again on balance shaft (10). Refer to: ↓,
Remove/install camshaft sprocket AR05.20-P-6040OM
REMOVING Install
8 Install timing case cover (6) Model 164 AR01.40-P-8000GZB
Model 203, 209 AR01.40-P-8000PI
Model 204 AR01.40-P-8000CO
Model 211 AR01.40-P-8000TI
Model 219.322 AR01.40-P-8000TQ
Model 207, 212, 221 AR01.40-P-8000SXI
Model 251.020/022/122 AR01.40-P-8000RTB
Models 461, 463 AR01.40-P-8000GY
