Remove/install engine from/onto front axle carrier - AR01.10-P-2510GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||

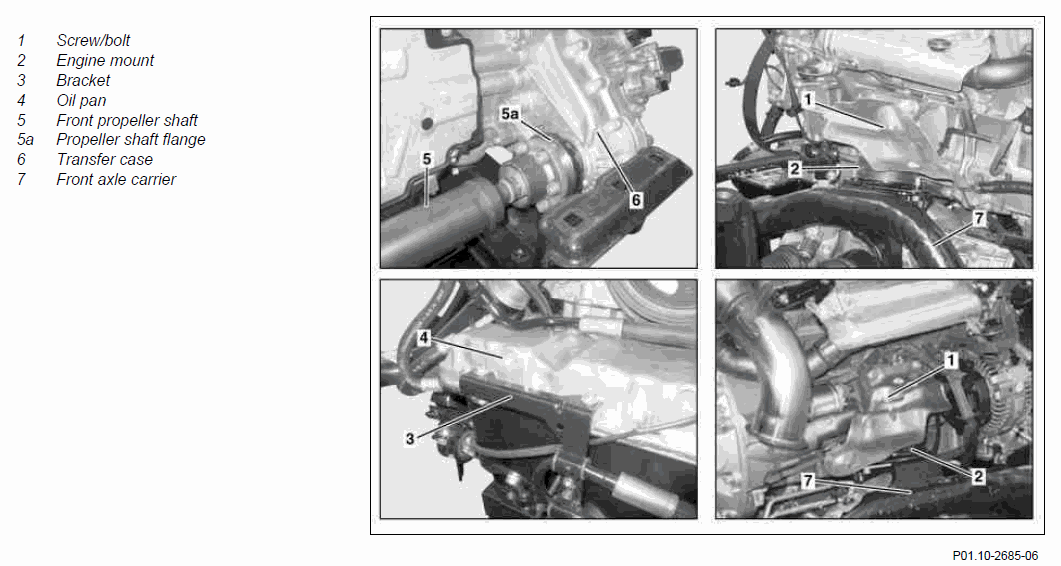

| 1 | Remove engine with the front axle carrier (7) | AR01.10-P-2500GZB | |
| 2 | Hook engine and transmission with engine hoists into lifting eye on the engine | Secure front axle carrier (7) on portable lifting platform with tensioning strap. | |
| 3 | Lift engine with engine hoist | Only raise far enough for chain on engine hoist to be lightly tensioned. | |
| 4 | Remove screw/bolt (1) of engine mounts (2) | *BA22.10-P-1002-03G | |
| 5 | Detach bracket (3) at oil pan (4) | *BA46.30-P-1007-01J | |
| 6 | Remove front propeller shaft (5) on transfer case (6) | Only vehicles with 4MATIC Mark front propeller shaft (5) relative to propeller shaft flange (5a). Detach vent line for front axle gear on vent valve. |
|
| Installation: It is essential to observe the tightening instructions. Failure to do so can result in noises and vibrations. | AR41.10-P-0070-03GZ | ||
| Fig 2 | |||
| *BA41.10-P-1003-01F | |||
| 7 | Lift engine and transmission out of front axle carrier (7) | ||
| 8 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 164 | |
|---|---|---|---|
| BA22.10-P-1002-03G | Bolt connecting front engine mount to engine support | Nm | 53 |
POWER STEERING PUMP
| Number | Designation | Model 164.1/8 | |
|---|---|---|---|
| BA46.30-P-1002-01J | Banjo bolt, high pressure expansion hose to power steering pump | Nm | 45 |
| BA46.30-P-1007-01J | Bolt, power steering pressure line bracket to engine oil pan | Nm | 10 |
PROPELLER SHAFT
| Number | Designation | Model 164.1/8 | ||
|---|---|---|---|---|
| BA41.10-P-1003-01F | Self-locking bolt, propeller shaft to transfer case (to front axle) | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 90 | ||
