Crank engine - AR01.00-P-0100GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164, 251

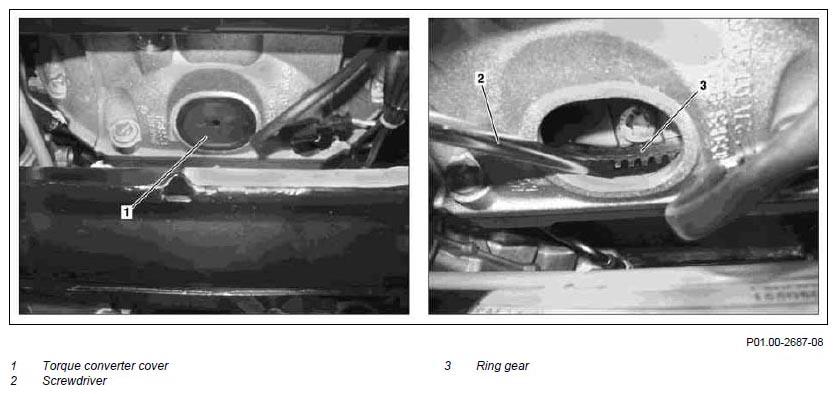

Fig 1: Cranking Engine

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove rear section on bottom of soundproofing	Model 164	AR94.30-P-5300GZ
2	Remove cover for torque converter (1) on transmission bell
3	Crank engine using a wide screwdriver (2) stepwise in its direction of rotation	Place the blade of the screwdriver (2) on the ring gear (3) and support against the body panel of the transmission bell.
4	Install in the reverse order
