Connect cylinder leakage testing unit - AR01.00-P-1300-01PI

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Intermediate Piece (611 589 02 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Screw-In Fitting (642 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Attach screw-in fitting (1) to spark plug hole.
Attach adapter piece (2) to screw-in fitting (1) .
Connect cylinder leakage tester (3) to adapter piece (2) .
Calibrate cylinder leakage tester (3).

Cylinder leakage tester

gotis://A_01_04.0

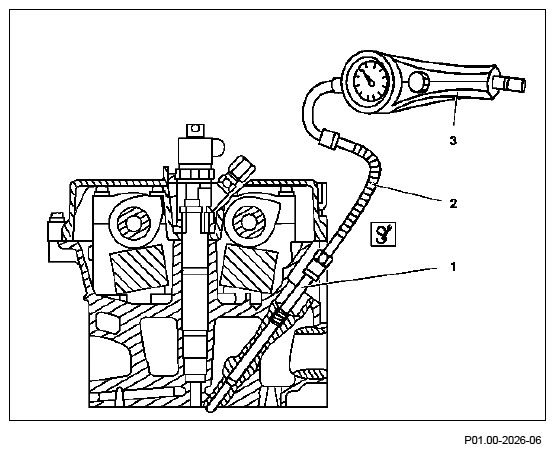

Fig 3: Connecting Cylinder Leakage Testing Unit
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
