Notes on the application of sealing compound to the cylinder head cover - AH01.30-P-1000-08PI
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

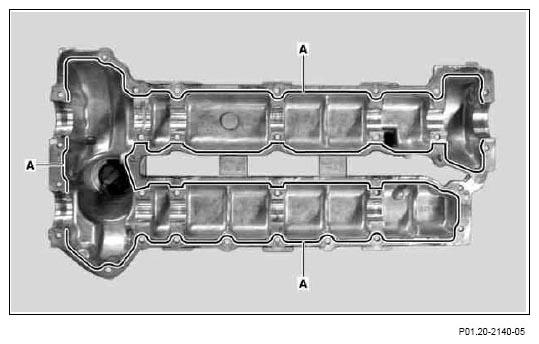

The retighten line (A) identifies the sealant run.
Sealing surfaces must be free of oil and grease. Apply sealing compound to surfaces as a bead 1.5 mm (± 0.5 mm) wide. The sealing compound must be applied within 10 min. The sealing compound bead must not be spread.
