Remove oil from cooling and heating system - AR20.00-P-1250GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164

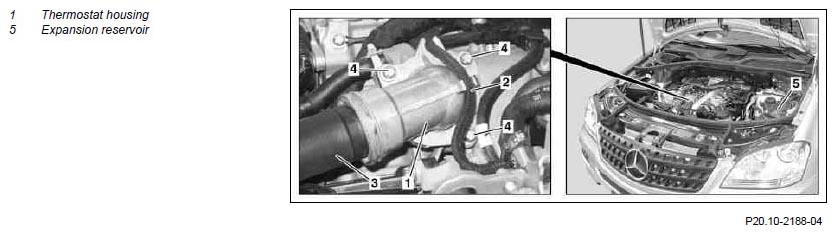

Fig 1: Identifying Thermostat Housing And Expansion Reservoir

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on coolant	All engines	AH20.00-N-2080-01A
	Notes on coolant level		AH20.00-P-1142-01GZB
1	Removes strut tower brace	Model 164.8 only Remove strut tower brace from strut tower mounts.	AR62.30-P-2500GY
2	Remove engine trim panel
3	Remove bottom section of soundproofing		AR94.30-P-5300GZ
4	Open expansion reservoir (5)	Rotate cooling system cap half a rotation anti-clockwise and release excess pressure. Then unscrew cooling system cap.
5	Drain coolant		AR20.00-P-1142GZB
6	Remove coolant thermostat from thermostat housing (1)		AR20.10-P-2460GZB
7	Install housing for removing oil in cooling and heating system	Installation: the housing may be used only for the purpose of removing oil and must be removed again after it has been rinsed.
	De-oil housing for radiator and heating system		WF58.50-P-2000-01A
			*BA20.10-P-1002-01S
	Clean
8	Set heater controls to full capacity	The heater of the vehicle must be set to the highest temperature stage. The heater circuit is not flushed otherwise.
9	Fill cooling and heating system with rinsing solution		AR20.00-P-1142GZB
		Mix the cleaner to a 5% flushing solution (10 l water, 0.5 l cleaner).
		Cleaner for engine and cooling system for oil drag-in, 10 liter	*BR00.45-Z-1009-04A
10	Warm up engine to normal operating temperature	When engine is running, maintain the operating temperature at about 80°C for about 5 min.
11	Turn off engine	Let the cooling system cool down to about 50°C.
12	Drain the rinsing solution	The rinsing solution must be completely drained at the drain plug of the radiator. Observe environmental regulations of cleaner manufacturer.
13	Fill cooling system with fresh water	Fill the expansion reservoir (5) with fresh water.
14	Warm up engine to normal operating temperature	While engine is running, retain operating temperature at about 80°C for about 5 min.
15	Drain fresh water	If required, repeat the rinsing procedure with fresh water so that all the rinsing solution is removed.
16	If required, repeat operation steps 9 and 15.
	Install
17	Remove housing for removing oil in cooling and heating system
	De-oil housing for radiator and heating system		WF58.50-P-2000-01A
			*BA20.10-P-1002-01S
18	Install the coolant thermostat		AR20.10-P-2460GZB
19	Pour in coolant		AR20.00-P-1142GZB
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
20	Inspecting cooling system for leaks		AR20.00-P-1010GZB
21	Install bottom sections of soundproofing		AR94.30-P-5300GZ
22	Close expansion reservoir (5)
23	Reinstall engine cover
24	Removes strut tower brace	Model 164.8 only	AR62.30-P-2500GY

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation		Engine 642
BA20.10-P-1002-01S	Bolt, coolant thermostat housing to charge air manifold	Nm	9

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1009-04A	Cleaner for engine and cooling system for oil drag-in, 10 liter	A 002 986 42 71
