Remove/install injection nozzle for exhaust aftertreatment system - AR14.40-P-2000GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

Shown on model 251

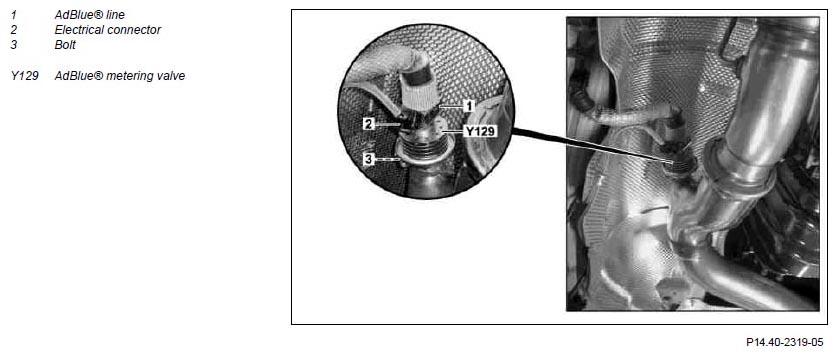

Fig 1: Identifying Injection Nozzle For Exhaust Treatment System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue®. Risk of poisoning caused by swallowing AdBlue®	Fill AdBlue® only into suitable containers. Wait until the pressure is released before starting any work on the exhaust aftertreatment system.	AS14.40-Z-0001-01A
1	Disconnect AdBlue® line (1)	To do this pull protective sleeve over the AdBlue® line (1) and detach safety clamp from AdBlue® line (1). Clean AdBlue® line (1) at connection immediately and seal. Installation: Replace sealing ring.
			Fig 2
2	Disconnect electrical connector (2) from AdBlue® metering valve (Y129)
	Notes on use, material properties and handling of AdBlue®		AH14.40-N-0001-01AB
3	Remove bolt (3) completely from clamp
4	Remove clamp and then remove AdBlue® metering valve (Y129)	Installation: Install new clamp Check positioning of AdBlue® metering valve (Y129), the lugs of the AdBlue® metering valve (Y129) must be located in the exhaust pipe grooves.
5	Install in the reverse order
6	Connect STAR DIAGNOSIS, read out fault memory and erase if necessary		AD00.00-P-2000-04A

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
