Remove/install injection line for exhaust aftertreatment system - AR14.40-P-2001GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 251, 164 with CODE (U42) BLUETEC diesel exhaust gas cleaning

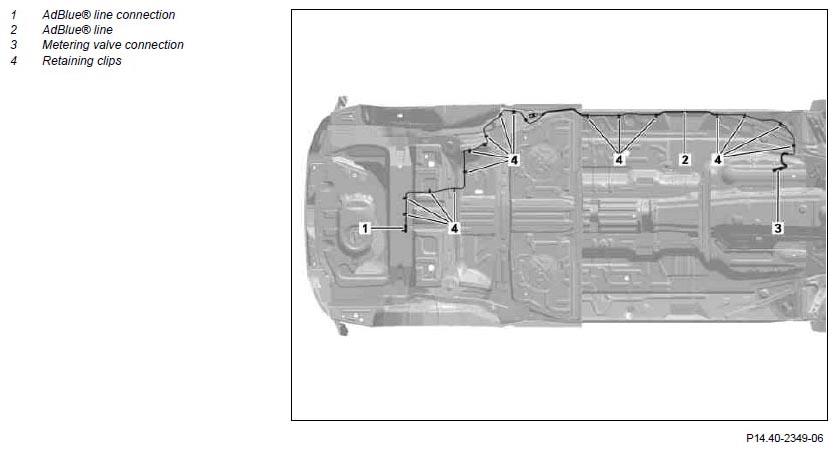

Fig 1: Identifying Injection Line For Exhaust Aftertreatment System Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

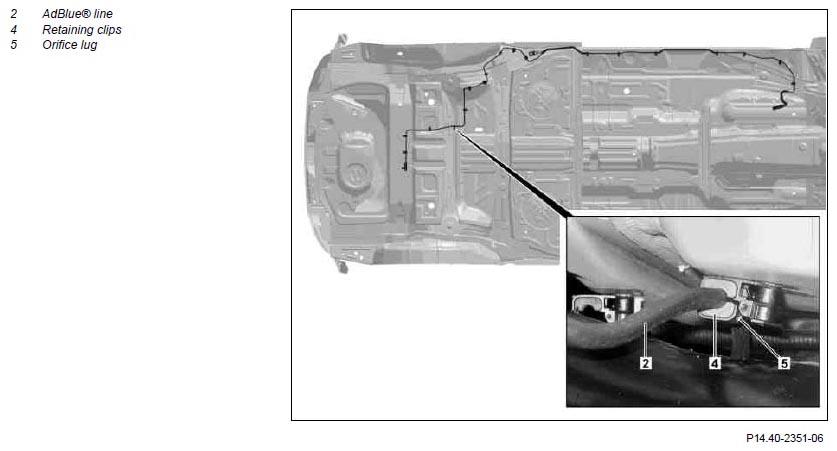

Fig 2: Identifying Injection Line For Exhaust Aftertreatment System Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove right underfloor paneling	Model 164	AR61.30-P-1001GZ
		Model 251	AR61.30-P-1001RT
	Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning from swallowing AdBlue	Only pour AdBlue into suitable containers. Only begin work on the exhaust aftertreatment system after releasing the pressure.	AS14.40-Z-0001-01A
2	Detach AdBlue® line (2) from AdBlue® line connection (1)	Clean the AdBlue® line connection (1) immediately and close off. Installation: Install new sealing ring.
	Notes on use, material properties and handling of AdBlue		AH14.40-N-0001-01AB
3	Remove right rear wheel
	Remove/install wheels, rotate if necessary	Model 164	AP40.10-P-4050Z
	Remove/install wheels, rotate if necessary	Model 251	AP40.10-P-4050RT
4	Open the retaining clamps (4) on the injection line	Unclip the retaining clamps (4) from below. To do this, actuate the orifice lug (5).
5	Remove AdBlue® line (2) above the rear axle carrier
	Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning from swallowing AdBlue	Only pour AdBlue into suitable containers. Only begin work on the exhaust aftertreatment system after releasing the pressure.	AS14.40-Z-0001-01A
6	Unclip AdBlue® line (2) at metering valve connection (3)	Clean the metering valve connection (3) immediately and close off. Installation: Install new sealing ring.
	Notes on use, material properties and handling of AdBlue		AH14.40-N-0001-01AB
7	Remove/install AdBlue® tank	Only if the line between the AdBlue® tank and AdBlue® line (2) has to be removed.	AR14.40-P-2014GZB
8	Remove the line between AdBlue® tank and AdBlue® line (2)	Only if the line between AdBlue® tank and AdBlue® line (2) is damaged.
9	Install in the reverse order
