Remove/install exhaust gas recirculation bypass flap - AR14.20-P-7661CD

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642

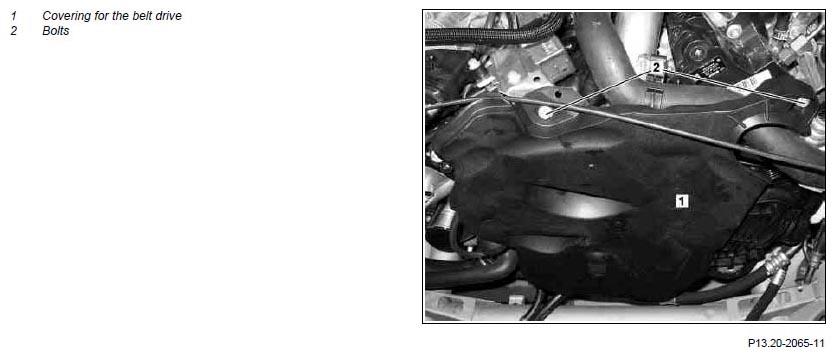

Fig 1: Identifying Covering For Drive Belt And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

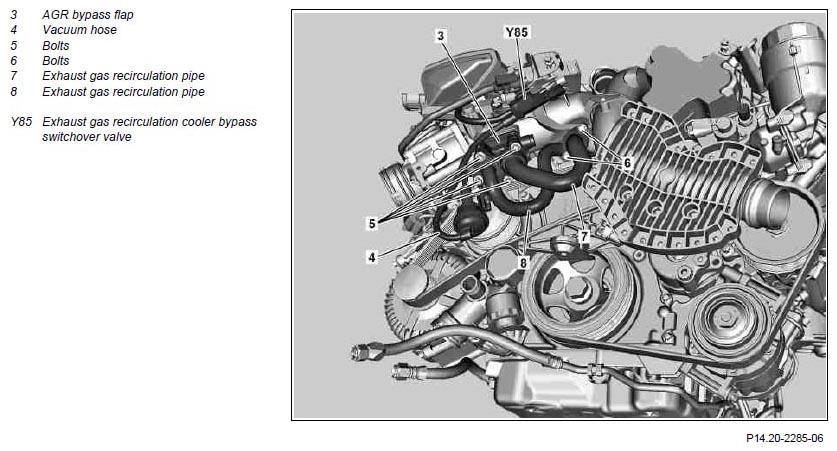

Fig 2: Identifying Exhaust Gas Recirculation Bypass Flap Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove engine cover
2	Remove covering for the belt drive (1)	Model 204, 207, 212 To do this remove bolts (2) and covering for the belt drive (1) upwards.
3	Remove fan unit	Model 204, 207	AR20.40-P-5050CW
		Model 212	AR20.40-P-5050EW
4	Disconnect vacuum hose (4)
5	Unhook exhaust gas recirculation cooler bypass switchover valve (Y 85) from the bracket
6	Remove bolts (3) and (4) and remove bypass flap (1) with exhaust gas recirculation pipe (5)	Bolt, AGR pipe to changeover flap	*BA14.20-P-1007-01G
		Bolt, EGR pipe to heat exchanger	*BA14.20-P-1012-01G
7	Install in the reverse order

EXHAUST GAS RECIRCULATION

Number	Designation		Engines 642.82/83/85/86/87/9
BA14.20-P-1007-01G	Bolt, AGR pipe to changeover flap	Nm	10
BA14.20-P-1012-01G	Bolt, EGR pipe to heat exchanger	Nm	10
