Remove/install AdBlue delivery module - AR14.40-P-2021GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 251, 164, 212, 221 with CODE (U42) BlueTEC diesel exhaust treatment (SCR)
Shows model 251
| Remove/install | |||
| Risk of burn injuries and scalding when working at AdBlue lines and the components attached to them. Risk of injury to skin and eyes when handling AdBlue. Risk of poisoning caused by swallowing AdBlue | Only pour AdBlue into suitable containers. Wait until the pressure is released before starting any work on the exhaust aftertreatment system. | AS14.40-Z-0001-01A | |
| Notes on use, material properties and handling of AdBlue® | AH14.40-N-0001-01AB | ||
| 1 | Remove AdBlue® tank | Model 164, 251 | AR14.40-P-2014GZB |
| Model 212, 221 | AR14.40-P-2014OGE | ||
| 2 | Disconnect electrical connectors (3, 5, 6) | ||
| 3 | Detach AdBlue® line on delivery module (A103/2) from fitting (4) | ||
| Figure | |||

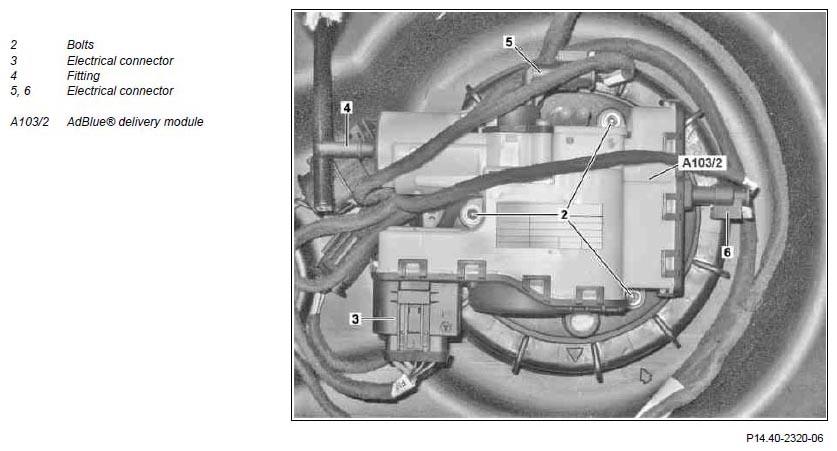

| 4 | Remove bolts (2) | *BA14.40-P-1003-02A | |
| 5 | Remove delivery module (A103/2) from AdBlue® tank | ||
| 6 | Close off connectors on delivery module (A103/2) | Figure | |
| 7 | Install in the reverse order | ||
| 8 | Write fill level of AdBlue® tank using STAR DIAGNOSIS in the AdBlue® control unit (N118/5) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
EXHAUST AFTERTREATMENT, BLUE TEC
| Number | Designation | Engine 642 with code U42 | |
|---|---|---|---|
| BA14.40-P-1003-02A | Bolt, delivery module to AdBlue tank module | Nm | 5 |
