Remove/install the throttle valve positioner - AR09.41-P-1321GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642 in MODEL 164, 251
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Removes strut tower brace | Model 164.8 only |
AR62.30-P-2500GY |
| 2 | Remove noise insulation (2) downstream of charge air cooler | AR09.40-P-6925GZB | |
| 3 | Remove engine charge air hose downstream of charge air cooler (3) | AR09.41-P-8625GZB | |
| 4 | Remove right air filter housing | Model 164 | AR09.10-P-1150GZC |
| Model 251 | AR09.10-P-1150RTC | ||

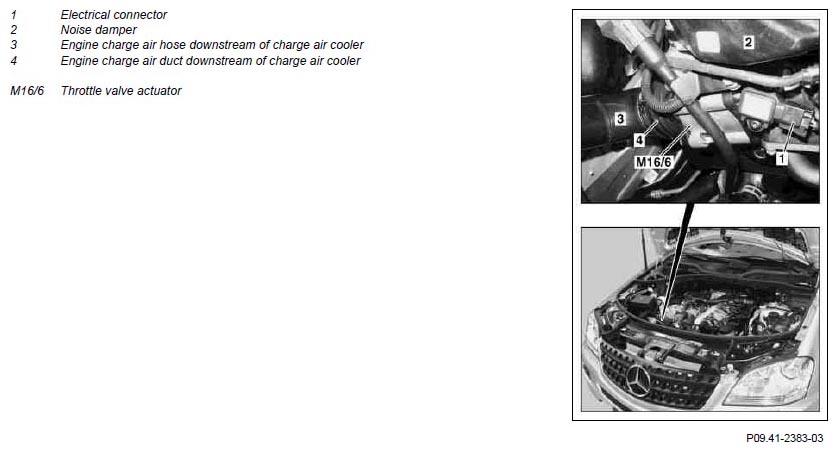

| 5 | Disconnect electrical connector (1) at throttle valve actuator (M16/6) | ||
| 6 | Remove engine charge air duct downstream of charge air cooler (4) | AR09.41-P-8624GZB | |
| 7 | Remove bracket from throttle valve actuator (M16/6) | *BA09.41-P-1006-01J | |
| 8 | Remove bolts on throttle valve actuator (M16/6) | *BA09.41-P-1008-01J | |
| 9 | Remove throttle valve actuator (M16/6) | ||
| 10 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-P-1006-01J | Bracket, throttle valve actuator to cylinder head | Nm | 9 |
| BA09.41-P-1008-01J | Throttle valve actuator on mixing chamber | Nm | 5 |
