Remove/install combination switch - AR54.25-P-2800GZ
MODEL 164

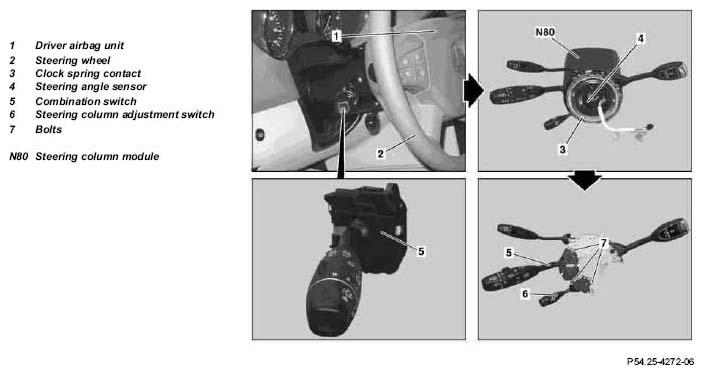

Shown on model 164.1 with electrically adjustable steering column, code 441
| Remove/instal | |||
|---|---|---|---|
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground cable | AR54.10-P-0003GZ | |
| 2 | Remove driver airbag unit (1) | AR91.60-P-0660GZ | |
| 3 | Remove steering wheel (2) | AR46.10-P-0100GZ | |
| 4 | Removing jacket tube module (N80) | AR54.25-P-2802GZ | |
| 5 | Remove clock spring contact (3) | AR46.10-P-0200GZ | |
| 6 | Remove steering angle sensor (4) | AR46.10-P-0300GZ | |
| 7 | Remove bolts (7) | ||
| 8.1 | Detach steering column adjustment switch (6) | ||
| 9 | Detach combination switch (5) | ||
| 10 | Install in the reverse order | ||
| 11 | Perform basic programming | AR00.19-P-0200GZ |
