Check and adjust toe on rear axle - AR40.20-P-0332GZ

MODEL 164

Shown on left rear axle half

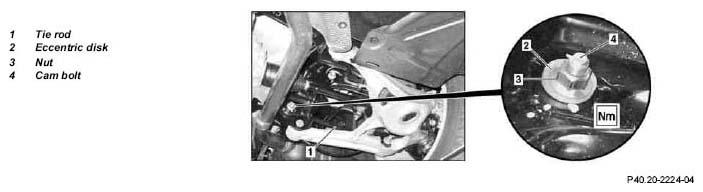

Fig 1: Identifying Tie Rod, Eccentric Disk And Cam Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Checking
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Carry out wheel alignment, compare the result with the test values	If substantial deviations in the total toe are found, the cause may be one of the following: Too great a difference in vehicle level between right and left-hand sides of vehicle. Deformation of the tie rod (1). Deformation of rear axle carrier, e.g. through accident damage. Deformation of the body, e.g. due to accident damage. Check for impermissible deformation on body. Refer to: ↓	AR40.20-P-0200GZ
		Checking accident vehicles and vehicles possibly damaged in an accident	AR40.30-P-0400GZ
		Total toe at vehicle level	*BE40.20-P-1001-10L
		Total toe at vehicle level	*BE40.20-P-1002-10L
		Total toe at vehicle level	*BE40.20-P-1003-10L
		Total toe at vehicle level	*BE40.20-P-1004-10L
		Permissible difference in rear axle toe between right and left sides of the vehicle	*BE40.20-P-1005-10L
	Adjust toe
2	Loosen nut (3)	Only if the measurements are outside the tolerance.
3	Adjust toe via cam bolt (4) and eccentric disk (2)	Only if the measurements are outside the tolerance.
4	Tighten nut (3)	Only if the measurements are outside the tolerance.
			*BA35.20-P-1001-04F
	Checking
5	Perform chassis alignment	Only if the toe was adjusted.	AR40.20-P-0200GZ

INSPECTION VALUES FOR TOE-IN AT REAR AXLE

Number	Designation			Model 164 air suspension without code 430	Model 164 air suspension with code 430
BE40.20-P-1001-10L	Total toe at vehicle level	-2.93°	∠°	0° 34'(± 7')	-
		-1.51°	∠°	0° 31'(± 7')	-
		1.35°	∠°	0° 25'(± 7')	-
		6.10°	∠°	0° 14'(± 7')	-
		8.95°	∠°	0° 10'(± 7')	-
BE40.20-P-1002-10L	Total toe at vehicle level	-2.57°	∠°	-	0° 34'(± 7')
		-1.09°	∠°	-	0° 31'(± 7')
		1.88°	∠°	-	0° 25'(± 7')
		6.83°	∠°	-	0° 14'(± 7')
		9.80°	∠°	-	0° 10'(± 7')
BE40.20-P-1003-10L	Total toe at vehicle level	-0.18°	∠°	-	-
		0.30°	∠°	-	-
		1.82°	∠°	-	-
		2.39°	∠°	-	-
		2.49°	∠°	-	-
BE40.20-P-1004-10L	Total toe at vehicle level	0.30°	∠°	-	-
		0.79°	∠°	-	-
		2.38°	∠°	-	-
		2.97°	∠°	-	-
		3.07°	∠°	-	-
BE40.20-P-1005-10L	Permissible difference in rear axle toe between right and left sides of the vehicle		∠°	7'	7'

TIE ROD

Number	Designation		Model 164.1/8
BA35.20-P-1001-04F	Self-locking nut, tie rod to rear axle carrier	Nm	93
