Remove/install expansion reservoir - AR46.25-P-1000GZS

MODEL 164, 209, 211, 219, 251 with ENGINE 156

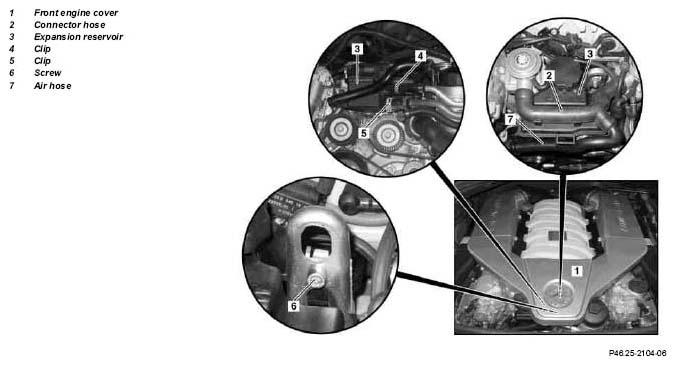

Fig 1: Identifying Expansion Reservoir Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning  caused by swallowing hydraulic fluid.	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood	Model 164	AR88.40-P-1000GZ
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
		Model 219	AR88.40-P-1000TX
		Model 251	AR88.40-P-1000RT
2	Unclip front engine cover (1)	Do not tilt the front engine cover (1) but instead lift it off vertically, otherwise the retaining lugs can break off.
3	Remove the connector hose (2)	Unclip the air hose (7) from the bracket.
4	Extract oil from expansion reservoir (3) of power steering pump	Hand pump	Figure
5	Undo clamp (4, 5) on expansion reservoir (3)	Seal the lines and openings at the expansion reservoir (3). Installation:  Replace the clamp (4, 5). Set of stop plugs	Figure
6	Remove bolt (6) from expansion reservoir (3)		*BA46.30-P-1003-01O
7	Lift off expansion reservoir (3)
8	Install in the reverse order
9	Fill power steering pump and bleed	Model 164	AR46.30-P-0010GZ
		Model 209	AR46.30-P-0010P
		Model 211	AR46.30-P-0010TS
		Model 219	AR46.30-P-0010TY
		Model 251	AR46.30-P-0010RT
		Model 164	*BF46.20-P-1001-01C
		Model 209, 211, 219	*BF46.20-P-1001-01A
		Model 251	*BF46.20-P-1001-01D
	Checking
10	Carry out visual inspection for leaks when engine is running

POWER STEERING PUMP

Number	Designation			Engine 156 in model 164, 209, 211, 219, 251
BA46.30-P-1003-01O	Bolt, expansion reservoir to front lifting eye	M6 X 13	Nm	8.5

STEERING GEAR

Number	Designation			Model 164
BF46.20-P-1001-01C	Power steering	Filling capacity	Liters	≈ 1.2
		MB steering gear oil	Sheet	BB00.40-P-0236-03A

STEERING GEAR

Number	Designation			Model 209	Model 211	Model 219
BF46.20-P-1001-01A	Power steering	Filling capacity	Liters	≈ 1, 0	≈1.1	≈ 1, 0
		-	-	-	-	-

STEERING GEAR

Number	Designation			Model 251 with engine 156
BF46.20-P-1001-01D	Power steering	Filling capacity	Liters	≈ 1.2
		MB steering gear oil	Sheet	BB00.40-P-0236-03A

Fig 2: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
