Remove/install fluid reservoir - AR83.30-P-6520GZ

MODEL 164, 251 / (except 164.177, 251.077 /177) with CODE (580) Automatic air conditioning with CODE (581) Comfort automatic air conditioning with CODE (582) Rear air conditioner

Shown on MODEL 164

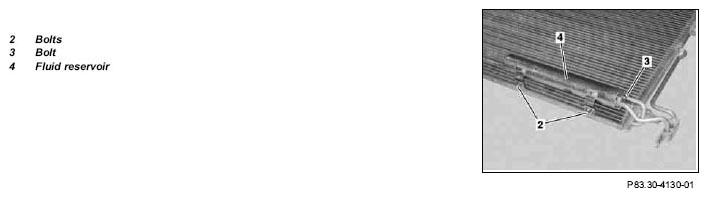

Fig 1: Identifying Fluid Reservoir Components - Shown On Model 164

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown in removed condition

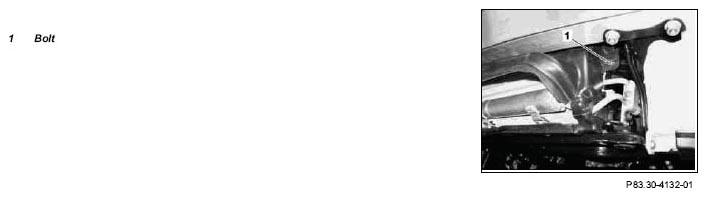

Fig 2: Identifying Fluid Reservoir Components - Shown In Removed Condition

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been discharged.	AS83.00-Z-0001-01A
	Procedure if air conditioning system is damaged or leaking		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01P
	Notes on handling refrigerant R134a	Air conditioning with refrigerant R134a	AH83.30-N-0003-01A
1	Drain, evacuate and refill air conditioning, check function and check for leaks	Model 164	AR83.30-P-1760GZ
		Model 251	AR83.30-P-1760RT
		Air conditioning evacuation, recycling and charging unit for R134a refrigerant	*WE58.40-Z-1002-22A
2	Remove front bumper	Model 164	AR88.20-P-2000GZ
		Model 251	AR88.20-P-2000RT
3	Unscrew bolt (1).
4	Remove bolts (2)		*BA83.30-P-1002-01I
			*BA83.30-P-1002-01J
5	Unscrew bolt (3).		*BA83.30-P-1001-01I
			*BA83.30-P-1001-01J
		Set of plugs for air conditioning system	*WH58.30-Z-1002-27A
6	Remove fluid reservoir (4)	Installation:  Use new fluid reservoir (4). Installation:  The packaging of the new fluid reservoir (4) must be undamaged. Once the packaging of the new fluid reservoir (4) has been opened, it must be installed within 20 minutes and the entire refrigerant circuit sealed, as otherwise the function of the fluid reservoir (4) can no longer be guaranteed. Installation:  Replace sealing ring of refrigerant line and wet with compressor oil.
7	Use suitable plug to seal opening of refrigerant line and suitable stop plug to seal opening of fluid reservoir (4)	The opening of the refrigerant line and fluid reservoir (4) must be closed otherwise dirt and moisture ingress damages the components which are connected to the refrigerant circuit.
8	Install in the reverse order
