Remove/install throttle valve actuator - AR07.61-P-1401GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

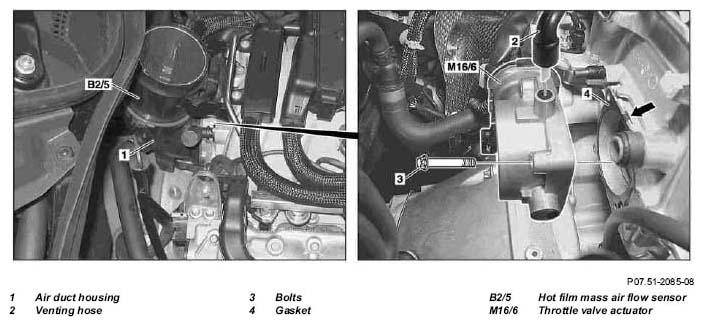

Fig 1: Identifying Throttle Valve Actuator Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove hot film mass air flow sensor (B2/5)		AR07.07-P-1453GZA
2	Remove air guide housing (1)		AR09.20-P-0080GZA
3	Release and disconnect the electrical connector at the throttle valve actuator (M16/6)
4	Pull bleed hose (2) out of throttle valve actuator (M16/6)
5	Remove bolts (3)		*BA07.61-P-1001-01D
6	Remove throttle valve actuator (M16/6)
7	Remove gasket (4)	Installation: Replace seal (4). Clip gasket (4) into the resonance intake manifold (arrow).
8	Install in the reverse order
9	Read out fault memory	Stored faults which may be caused by disconnecting cables or by simulation during test operations, must be erased in the fault memory after completing the work. STAR DIAGNOSIS diagnostic system

ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM

Number	Designation		Engine 272	Engine 273
BA07.61-P-1001-01D	Bolt connecting throttle valve actuator to resonance intake manifold	Nm	9	9
