Remove/install the air duct housing - AR09.20-P-0080GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

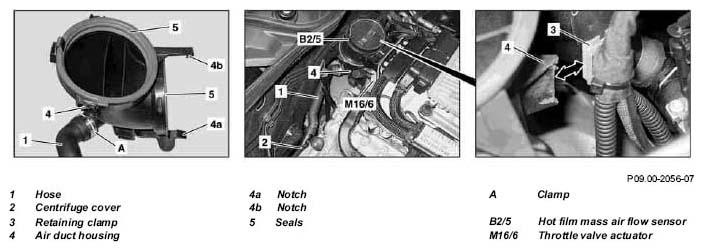

Fig 1: Identifying Air Duct Housing Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove air filter housing		AR09.10-P-1150GZA
2	Remove hot film mass air flow sensor (B2/5)		AR07.07-P-1453GZA
3	Detach hose (1) at centrifuge cover (2)	Do not use pointed or sharp-edged tools to detach the hose (1); they will damage the hose.
4	Detach retaining clamp (3) on electric wiring harness from air duct housing (4)
5	Push notch (4a) downwards and swing away air duct housing (4) from under the throttle valve actuator (M16/6)
6	Raise notch (4b) and remove air duct housing (4) from throttle valve actuator (M16/6)
7	Detach hose (1) at air duct housing (4)	Only when replacing the air duct housing (4). Do not use pointed or sharp-edged tools to detach the hose (1); they will damage the hose. Installation: Replace clamp (A). Never use screw and nut clamps or spring bracket clamps; otherwise, there is a possibility of leaks.
	Checking
8	Check seals (5)	Check seals (5) for wear and damage; replace if necessary.
9	Install in the reverse order
