Remove/install injection valves (ME-SFI) - AR07.03-P-6520GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

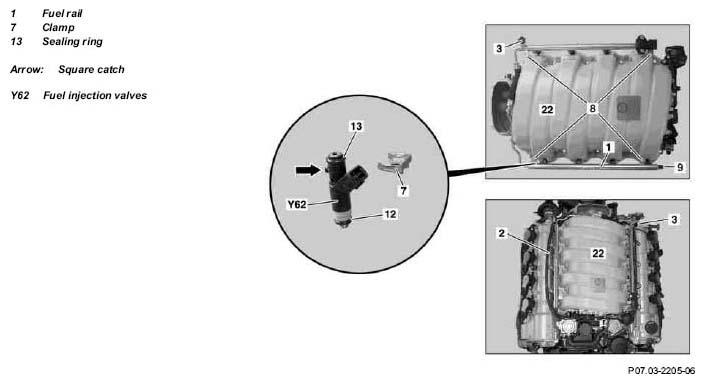

Fig 1: Identifying Injection Valves (ME-SFI) Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel.	No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood and raise to vertical position	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT
2	Remove the partition wall between the wheelhouses	Only model 251.	AR62.30-P-2400RT
3	Remove air filter housing	Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off.	AR09.10-P-1150GZS
4	Remove fuel distributor rail (1) together with fuel injectors		AR07.03-P-1451GZS
5	Remove clamp (7) from fuel injection valve (Y62) and fuel distributor rail (1)
6	Remove fuel injection valves (Y62) from fuel distributor rail (1)	Inspect sealing rings (13) for damage and replace if required, otherwise leaks may occur. Installation: Observe correct seating of the fuel injection valves (Y62) in the fuel distributor rail (1). Installation: The clamp (7) must get locked in the square catch (arrow) at the fuel injection valves (Y62). Installation: Wet sealing ring (13) slightly with liquid lubricant before assembly.
		Lubricant	*BR00.45-Z-1002-06A
7	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Carry out engine test run and check fuel system for leaks	In the event of oil loss, determine and eliminate the cause; otherwise, there may be malfunctions and damage to the engine as well as the environment.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
