Remove/install regulator for alternator (Engine 272, 273) - AR15.40-P-5760GZA
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 164, 251
MODIFICATION NOTES
| 7.12.05 | Bolt connecting regulator to alternator | Engine 272 | *BA15.40-P-1005-01F |
| Bolt connecting cover to alternator | *BA15.40-P-1008-01F |
| Remove/install | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |

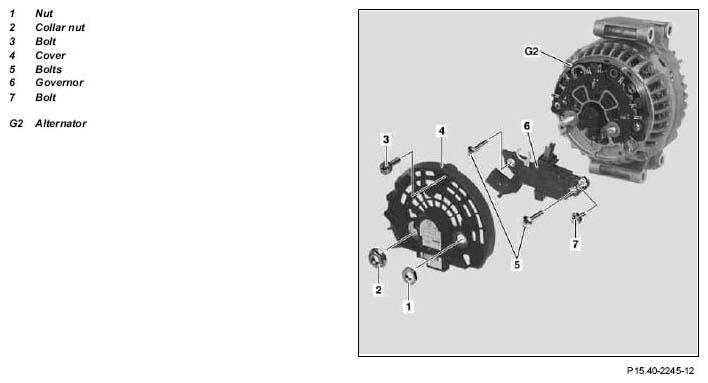

| 1 | Dismount lower engine compartment paneling | Model 164 | AR61.20-P-1105GZ |
| Model 251 | AR61.20-P-1105RT | ||
| 2 | Remove alternator | Model 164.8 | AR15.40-P-5032GZA |
| Model 251 with engine 272 without 4MATIC | AR15.40-P-5032RTA | ||
| 3 | Unscrew collar nut (2) | *BA15.40-P-1007-01F | |
| 4 | Unscrew nut (1) | *BA15.40-P-1006-01F | |
| 5 | Remove screw (3) | *BA15.40-P-1008-01F | |
| 6 | Take off cover (4) | ||
| 7 | Remove bolts (5, 7) from regulator (6) | *BA15.40-P-1005-01F | |
| 8 | Remove regulator (6) from the side | ||
| 9 | Install in the reverse order |
ALTERNATOR
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BA15.40-P-1005-01F | Bolt connecting regulator to alternator | M4X19 | Nm | 3 | 3 |
| M4X13 | Nm | 2 | 2 | ||
| BA15.40-P-1006-01F | Nut connecting cover to alternator | Nm | 12 | 12 | |
| BA15.40-P-1007-01F | Collar nut connecting cover to alternator | Nm | 30 | 30 | |
| BA15.40-P-1008-01F | Bolt connecting cover to alternator | Nm | 3 | 3 | |
