Remove/install tumble flap and resonance flap switchover valve at intake manifold - AR09.20-P-1990GZD (ML350, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 164, 251
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove air filter housing | AR09.10-P-1150GZA | |

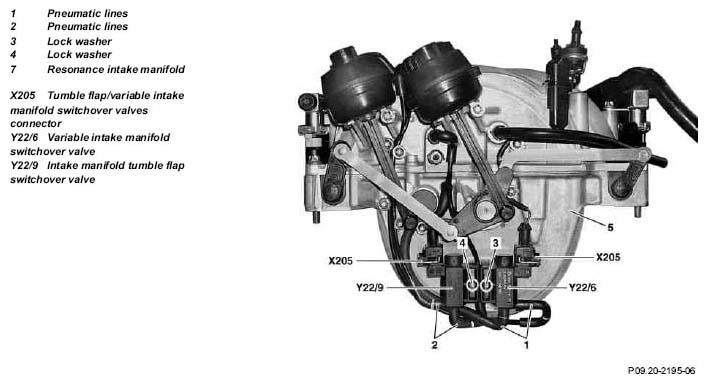

| 2 | Remove the resonance intake manifold (7) | AR09.20-P-1961GZA | |
| 3 | Pull pneumatic line (1 or 2) out of switchover valve (Y22/6 or Y22/9) | ||
| 4 | Remove lock washer (3 or 4) | ||
| 5 | Disconnect the electrical connector (X205) at the switchover valve (Y22/6 or Y22/9) | ||
| 6 | Remove switchover valve (Y22/6 or Y22/9) from resonance intake manifold (7) | ||
| 7 | Install in the reverse order | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run and check the intake tract and fuel system for leaks |
